The ADM483EARZ-REEL from Analog Devices Inc. is a high-performance, low-power transceiver module designed for bidirectional data communications on multipoint bus transmission lines. It is part of the industry-standard ADM series, renowned for its reliability and efficiency in various applications, including industrial and automation systems.

Key Features

• Half-Duplex EIA/TIA-485 Transceiver: This device is optimized for balanced data transmission and is compliant with the EIA/TIA-485 standard, ensuring interoperability with other compliant devices in the network.
• Low Power Consumption: It operates with a very low quiescent current, making it ideal for power-sensitive applications.
• Extended Temperature Range: The ADM483EARZ-REEL is designed to perform reliably in extreme conditions, with an operational temperature range from -40°C to +85°C.
• High Data Rate: With a data rate of up to 250 kbps, this transceiver is suitable for applications requiring moderate speed data transfer.
• Thermal Shutdown Protection: The device includes an internal thermal shutdown mechanism to protect against excessive power dissipation that could lead to high junction temperatures.
• Receiver Input Hysteresis: It features built-in hysteresis to improve noise rejection, ensuring robust data communication over long cable runs.
• Fail-Safe Receiver: The receiver ensures a known fail-safe state when the inputs are open or shorted, or idle, enhancing the system's reliability.

Applications

The ADM483EARZ-REEL is versatile and can be used in a variety of applications such as:

• Industrial Control
• Building Automation
• Factory Automation
• Process Control Systems
• Networking and Data Communication Systems

Packaging and Quality

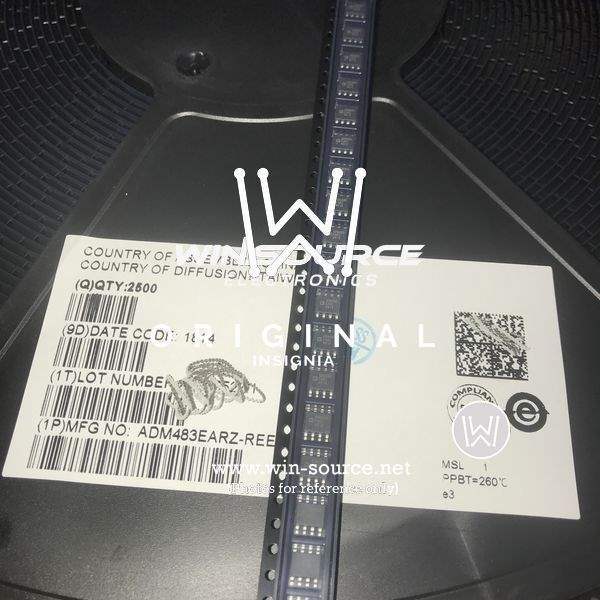

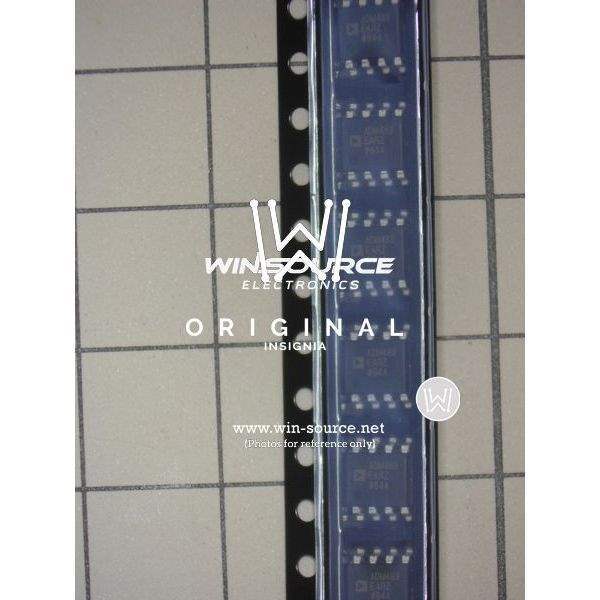

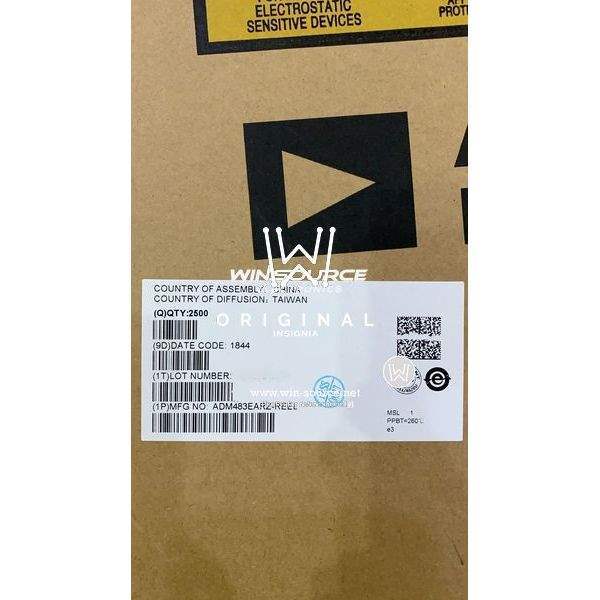

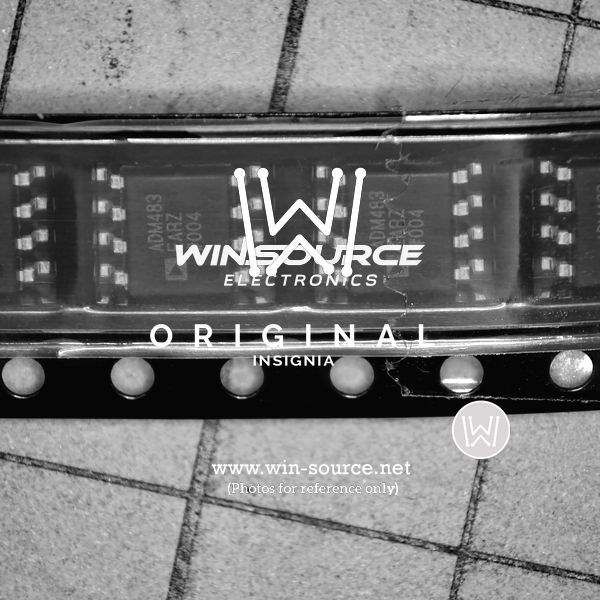

Supplied in a convenient reel packaging, the ADM483EARZ-REEL is designed for easy integration into automated manufacturing processes, reducing manual handling and potential for damage. Analog Devices Inc. ensures high-quality standards, with each device undergoing rigorous testing to maintain consistency and performance across batches.
