ADN2817ACPZ-RL7 - Continuous Rate Clock and Data Recovery IC by Analog Devices Inc.

The ADN2817ACPZ-RL7 is a high-performance Continuous Rate Clock and Data Recovery (CDR) integrated circuit from the renowned manufacturer Analog Devices Inc. This advanced IC is designed to provide a robust and flexible solution for data communication and telecommunication applications. It is capable of recovering clock and data signals from a noisy environment, ensuring data integrity and synchronization in systems that demand high-speed data transmission.

The ADN2817ACPZ-RL7 offers continuous data rate coverage from 10.709 Mbps to 11.3 Gbps, making it an ideal choice for a wide range of applications including SONET/SDH, 10 Gigabit Ethernet, Fibre Channel, and other high-speed data links. The device's versatility is further enhanced by its support for various fiber optic standards, ensuring compatibility with both existing and emerging network infrastructures.

One of the key features of this CDR IC is its automatic rate adaptation capability, which allows the device to lock onto incoming data rates without the need for an external reference clock or programming from a host controller. This simplifies the design and reduces system complexity, which is particularly beneficial in applications where space and power are at a premium.

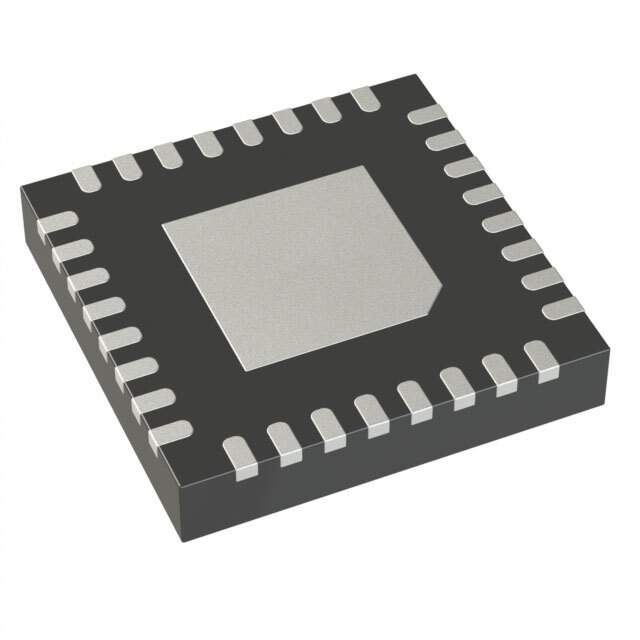

The ADN2817ACPZ-RL7 is housed in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) that measures just 5 mm x 5 mm, providing a space-saving solution for densely packed circuit boards. It operates over an industrial temperature range and includes an integrated voltage-controlled oscillator (VCO), which minimizes the number of external components required for implementation.

With its advanced features, such as loss of signal detection, programmable bandwidth control, and diagnostic capabilities, the ADN2817ACPZ-RL7 is a highly reliable and efficient component for high-speed data recovery and clock generation. Its robust performance ensures that it meets the stringent requirements of today's fast-paced, data-driven world, making it a top choice for system designers and engineers seeking to enhance their data communication solutions.

Overall, the ADN2817ACPZ-RL7 from Analog Devices Inc. represents a state-of-the-art solution for clock and data recovery in high-speed digital networks, providing performance, flexibility, and reliability for a multitude of applications.
