Analog Devices Inc. ADP121-ACBZ28R7: High-Performance Low Dropout Linear Regulator

Introducing the ADP121-ACBZ28R7, a cutting-edge low dropout (LDO) linear regulator from the renowned manufacturer Analog Devices Inc. This compact, high-efficiency component is designed to meet the rigorous demands of modern electronic applications, providing a stable and reliable power supply with minimal power dissipation.

Key Features:

• Low Dropout Voltage: The ADP121-ACBZ28R7 boasts an ultra-low dropout voltage, ensuring efficient operation even when the input-to-output voltage differential is minimal. This characteristic is particularly advantageous in battery-operated devices where maximizing battery life is crucial.
• High Output Accuracy: With a precision output voltage accuracy of ±1%, this LDO regulator delivers a consistent voltage supply, which is essential for sensitive electronic circuits that require stable power for optimal performance.
• Low Quiescent Current: The device features an exceptionally low quiescent current of 11 µA (typical), which significantly reduces power consumption when in idle mode, further extending battery lifespan in portable applications.
• Wide Input Voltage Range: The ADP121-ACBZ28R7 operates over a broad input voltage range from 2.3 V to 5.5 V, making it versatile for use in a variety of systems with different power requirements.
• Output Voltage: This particular model provides a fixed output voltage of 2.8 V, suitable for a wide array of low-voltage electronics.
• Thermal Overload and Short-Circuit Protection: Safety is a top priority, and this device includes built-in thermal overload protection and short-circuit protection features to safeguard the electronic system against potential damage from overheating or circuit faults.

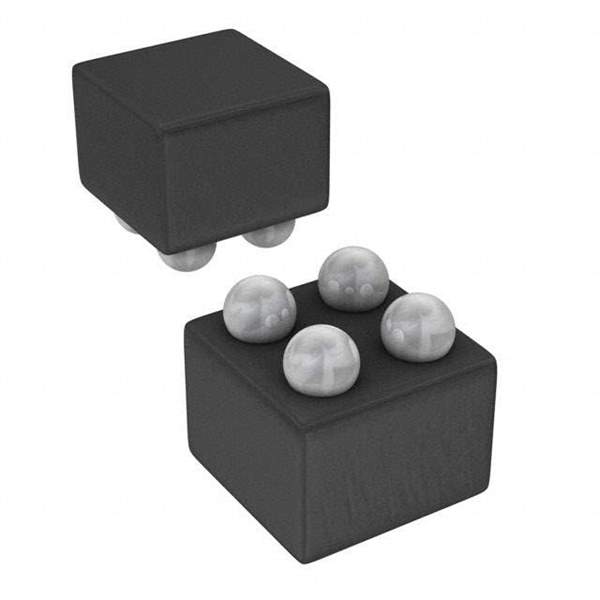

• Small Package Size: The ADP121-ACBZ28R7 comes in a compact, 4-ball WLCSP (Wafer Level Chip Scale Package) that is ideal for space-constrained applications.

Applications:

The ADP121-ACBZ28R7 is suitable for a wide range of applications, including but not limited to:

• Portable and battery-powered devices
• Mobile phones and personal media players
• Healthcare and medical instrumentation
• Wireless communication systems
• Imaging and audio devices

With its exceptional performance and versatility, the ADP121-ACBZ28R7 from Analog Devices Inc. is an ideal choice for designers seeking an LDO regulator that delivers both efficiency and reliability in their electronic designs.
