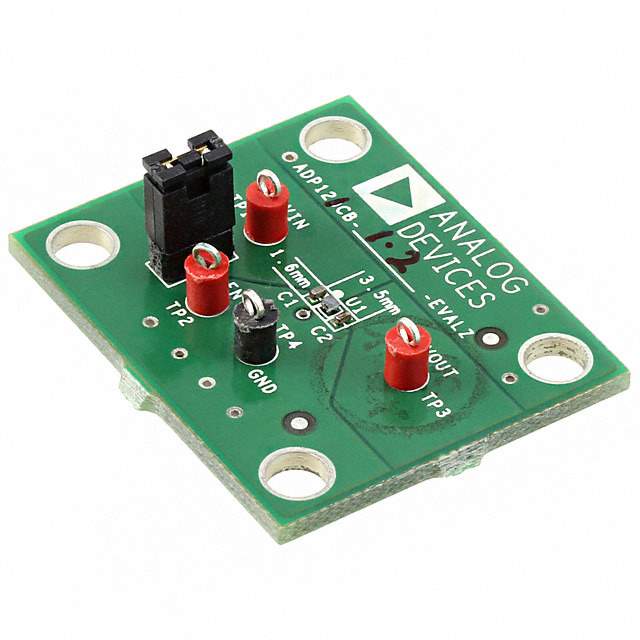

ADP121CB-1.2-EVALZ Evaluation Board

The ADP121CB-1.2-EVALZ from Analog Devices Inc. is a state-of-the-art evaluation board designed for engineers and developers who need to assess the capabilities and performance of the ADP121 low dropout linear regulator series. This particular model is tailored for the 1.2V output voltage variant, offering a compact and efficient solution for a wide range of applications.

Key Features

• Low Dropout Voltage: The ADP121 series is known for its low dropout performance, which ensures efficient operation even when the input voltage is very close to the output voltage.
• High Accuracy: This evaluation board provides a high accuracy output voltage, which is critical for sensitive electronic applications requiring stable and precise voltage supplies.
• Low Quiescent Current: With an exceptionally low quiescent current, the ADP121CB-1.2-EVALZ is ideal for battery-powered devices, where power conservation is paramount.
• Thermal Protection: The board includes thermal overload protection features that safeguard the regulator from damage due to overheating.
• Current Limiting: Built-in current limiting protects the device and the load from damage in the event of an output overload.

Applications

The ADP121CB-1.2-EVALZ is suitable for a vast array of applications, including but not limited to:

• Portable and battery-powered devices
• Medical and healthcare equipment
• Data acquisition systems
• Microcontroller power supplies
• Wireless communication devices

Design and Ease of Use

The evaluation board is designed with simplicity in mind, allowing for quick and easy setup. It includes test points that provide convenient access for measuring the regulator's performance. This plug-and-play approach enables users to rapidly prototype and test their designs, reducing development time and accelerating the time to market for their products.

About Analog Devices Inc.

Analog Devices Inc. is a leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits that help solve the toughest engineering challenges. The ADP121CB-1.2-EVALZ reflects the company's commitment to delivering high-quality and reliable solutions to the electronics industry.
