ADP1712AUJZ-0.95R7 - Low Dropout Linear Regulator

The ADP1712AUJZ-0.95R7 is a high-performance, low-dropout linear regulator designed by Analog Devices Inc., a leader in high-performance analog technology. This regulator offers a fixed output voltage of 0.95V with a precision of ±1.4% to ensure stable operation for sensitive electronic devices. It is an ideal power management solution for a wide range of applications, including portable and battery-powered equipment, where efficient power conversion and minimal power loss are crucial.

With a low dropout voltage of just 230mV at 300mA, the ADP1712AUJZ-0.95R7 can maintain regulation while operating closer to the input supply voltage, which extends battery life in portable applications. The device is capable of delivering up to 300mA of continuous output current, making it suitable for moderate load conditions.

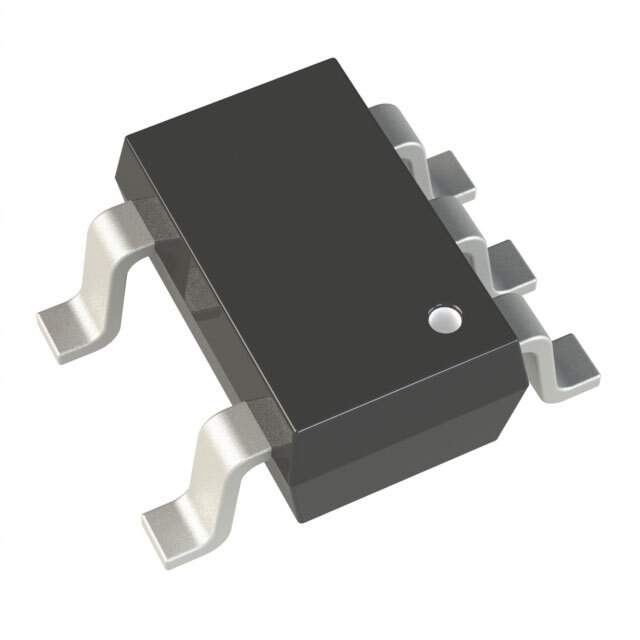

The regulator comes in a compact TSOT-5 package, which is highly valued in space-constrained applications. Its small footprint allows for easy integration into PCB designs without compromising performance or taking up valuable board space.

One of the key features of the ADP1712AUJZ-0.95R7 is its low quiescent current, which is typically 11µA. This characteristic is particularly important in portable devices where extending battery life is a priority. The device also includes a range of protective features such as over-current protection and thermal shutdown, which safeguard the regulator and the downstream circuitry from damage due to abnormal operating conditions.

For applications requiring a stable and reliable power source, the ADP1712AUJZ-0.95R7 offers a no-load stability of 0.1% and full-load stability of 0.4%, ensuring consistent performance across a range of operating conditions. Additionally, the device is stable with small ceramic output capacitors, which is advantageous for designs that require low output capacitance.

In summary, the ADP1712AUJZ-0.95R7 from Analog Devices Inc. is a versatile and efficient LDO regulator that provides a fixed output voltage with high accuracy, low dropout, and low quiescent current. Its compact size, stability, and protective features make it an excellent choice for portable and space-sensitive applications.
