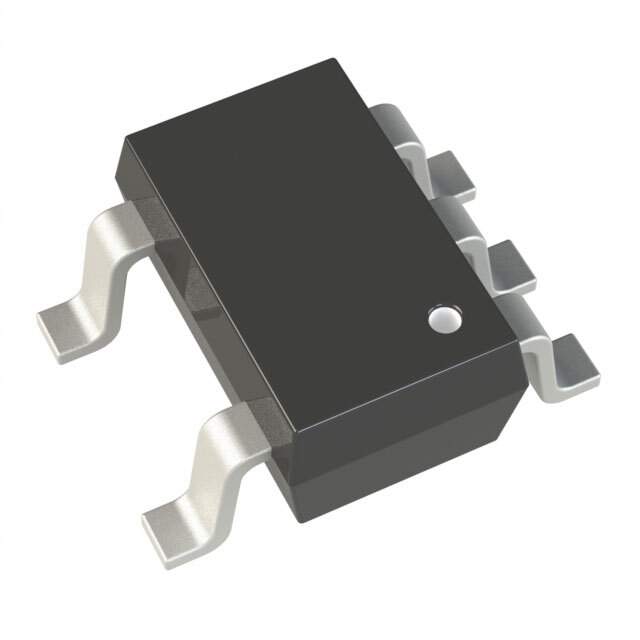

ADP1714AUJZ-1.2-R7 Linear Voltage Regulator from Analog Devices Inc.

The ADP1714AUJZ-1.2-R7 is a high-performance, low-dropout linear voltage regulator designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This regulator is specifically engineered to deliver a fixed output voltage of 1.2V with an input voltage range from 2.2V to 5.5V, making it an ideal choice for a wide array of portable and battery-powered applications where efficient power management is crucial.

Encased in a compact TSOT-5 package, the ADP1714AUJZ-1.2-R7 boasts an impressive low dropout voltage, ensuring minimal power loss even when the input voltage is close to the output voltage. This feature, combined with a low quiescent current of just 85µA, makes this regulator exceptionally power-efficient, extending the battery life of the devices it powers.

The device is capable of delivering up to 300mA of output current, which is sufficient for a range of applications including microprocessors, digital cameras, and other portable electronics. Furthermore, the ADP1714AUJZ-1.2-R7 is equipped with several safety features to ensure reliable operation. These include over-current protection, thermal overload protection, and a shutdown function that helps prevent damage from excessive power draw or overheating.

For designers concerned with power integrity, the ADP1714AUJZ-1.2-R7 offers excellent load and line regulation, maintaining a stable output voltage despite variations in input voltage or load current. This stability is critical for sensitive electronic components that require a consistent power supply for optimal performance.

With its robust design and comprehensive protection features, the ADP1714AUJZ-1.2-R7 from Analog Devices Inc. is a versatile and reliable choice for engineers looking to enhance the power efficiency and performance of their electronic designs. Its small footprint and ease of integration make it an attractive option for space-constrained applications without compromising on functionality or safety.

For detailed specifications, application notes, and additional resources, engineers and designers are encouraged to visit the Analog Devices Inc. website or contact their local sales representative.
