Analog Devices Inc. ADP220ACBZ-2818R7: Precision Voltage Regulator

The ADP220ACBZ-2818R7 is a high-performance, low-dropout linear voltage regulator designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This regulator is specifically engineered to deliver a stable and precise voltage supply, making it an ideal choice for sensitive electronic applications that require a consistent power source.

Key Features

• Output Voltage: This device provides a fixed output voltage of 2.818V, which is suitable for various applications, including precision analog circuits.
• High Accuracy: The ADP220ACBZ-2818R7 boasts excellent load and line regulation, ensuring minimal deviation in output voltage even with changes in input voltage or load conditions.
• Low Dropout Voltage: The low dropout feature allows the regulator to continue providing a stable output even when the supply voltage is very close to the output voltage, maximizing efficiency and battery life in portable applications.
• Thermal Protection: It includes built-in thermal overload protection that shuts down the output when the operating temperature exceeds the safe threshold, protecting the device and the application from potential damage.
• Current Limiting: The device also features current limiting to protect against overcurrent conditions, ensuring the longevity of both the regulator and the powered device.

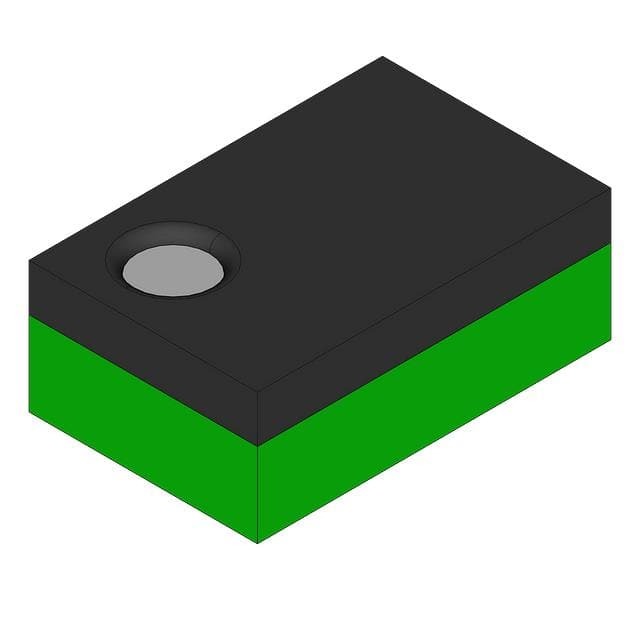

• Packaging: The ADP220ACBZ-2818R7 comes in a compact, surface-mount package, allowing for efficient use of board space in space-constrained applications.

Applications

With its precise voltage regulation and robust protection features, the ADP220ACBZ-2818R7 is suitable for a wide range of applications, including:

• Portable and battery-powered devices
• Microprocessor and microcontroller systems
• Data communication equipment
• Sensors and precision instrumentation
• Medical devices

Analog Devices Inc.'s commitment to quality ensures that the ADP220ACBZ-2818R7 voltage regulator is a reliable choice for designers looking to enhance the performance and stability of their electronic systems. With its precise output and integrated protective features, this regulator stands out as a top-tier component for any application requiring a stable and efficient power supply.
