ADP5052ACPZ Integrated Power Solution

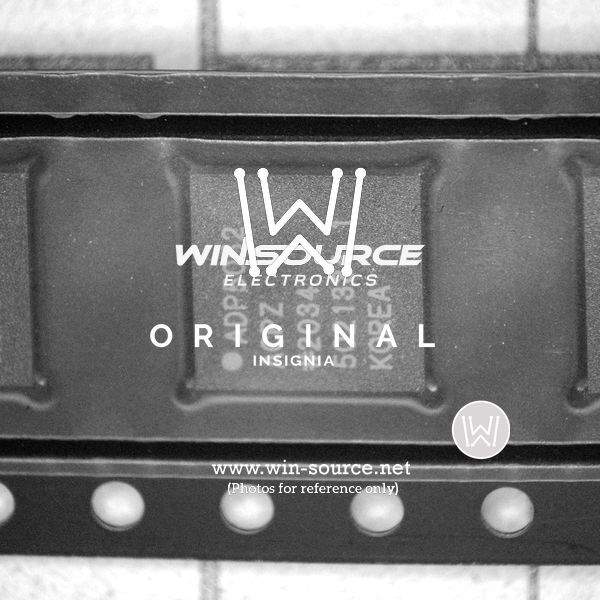

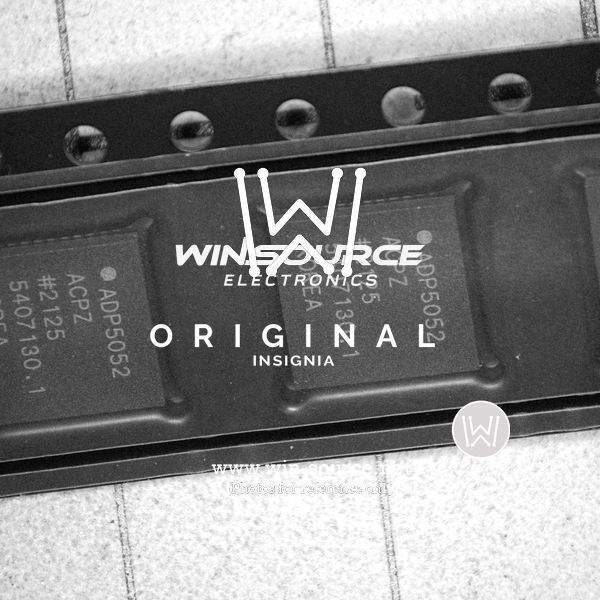

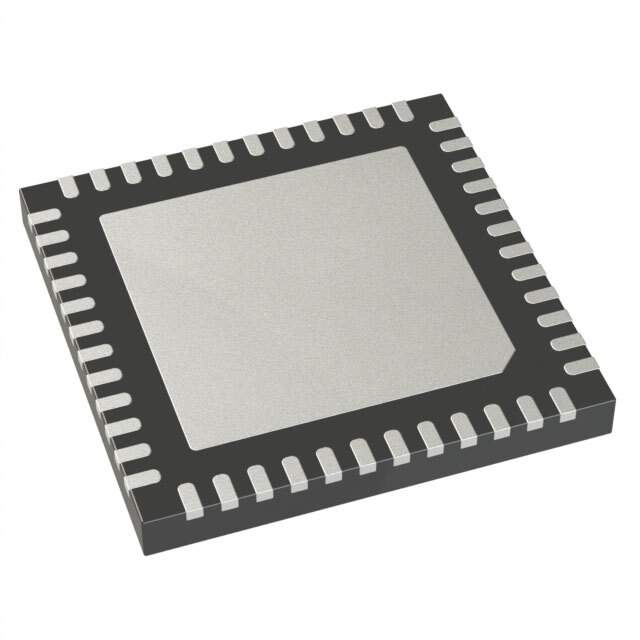

The ADP5052ACPZ from Analog Devices Inc. is a highly integrated power management solution designed to provide efficient, reliable power to complex multi-rail systems. It combines four high-performance buck regulators and one 200 mA low dropout (LDO) regulator in a compact 48-lead LFCSP package, making it an ideal choice for space-constrained applications.

The buck regulators within the ADP5052ACPZ offer a wide input voltage range from 4.5 V to 15 V, allowing for flexibility in various system designs. They are capable of delivering output currents of 4 A, 4 A, 1.2 A, and 1.2 A respectively, which can be used to power core processors, memory, and peripheral I/Os. The high level of integration helps to minimize the external component count, which in turn reduces board space and overall system cost.

Each buck regulator has an independently adjustable output voltage, which can be set via external resistors. The device also features a precision-enabled input and a power-good output that provides system monitoring capabilities, ensuring that each power rail is functioning correctly. The high switching frequency of up to 1.4 MHz allows for the use of small inductors and capacitors, further saving on board space.

The LDO regulator included in the ADP5052ACPZ provides an additional low-noise power source with a maximum output current of 200 mA, perfect for sensitive analog circuits. The LDO can operate from the input voltage or can be powered from one of the buck regulators, offering design flexibility.

For protection, the ADP5052ACPZ features overcurrent protection (OCP), thermal shutdown (TSD), and under-voltage lockout (UVLO) to safeguard the device and the system from damage under abnormal operating conditions. The device is also capable of synchronized or sequenced startup to meet specific system power-up requirements.

In summary, the ADP5052ACPZ is a versatile, high-efficiency power management IC that simplifies design and increases reliability for a wide range of applications, including industrial automation, healthcare, communications infrastructure, and more.
