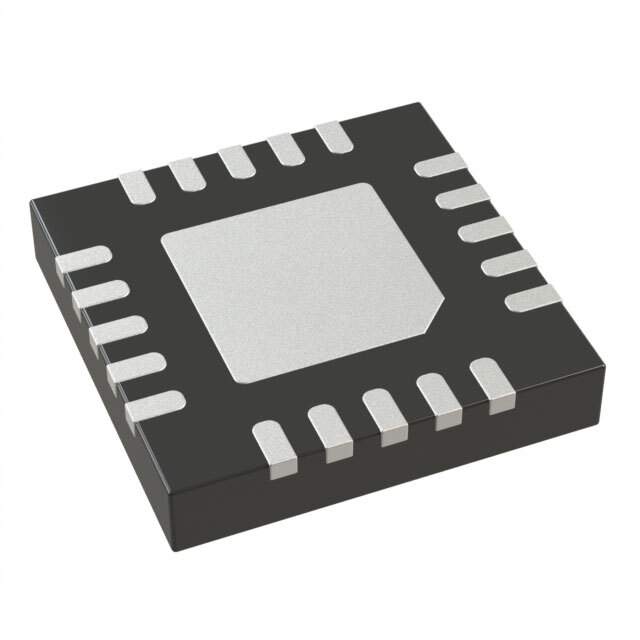

ADP5071ACPZ-R7

Part No ADP5071ACPZ-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BST SEPIC ADJ DL 20LFCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 19 Weeks
Features Switching Regulator IC Output
Manufacturer Analog Devices Inc.
Package Reel - TR
Family Name ADP5071
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ADP5071ACPZ-R7CT, ADP5071ACPZ-R7TR, ADP5071ACPZ-R7DKR, ADP5071ACPZ-R7-ND
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 851539-ADP5071ACPZ-R7
Ultra Librarian 3D Model Ultra Librarian ADP5071ACPZ-R7 CAD Model

Description

ADP5071ACPZ-R7: High-Performance DC-DC Converter by Analog Devices Inc.

The ADP5071ACPZ-R7 is a cutting-edge DC-DC converter module designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This product is tailored for applications that demand high efficiency, compact size, and versatility in voltage conversion. The ADP5071ACPZ-R7 stands out for its ability to convert a wide range of input voltages into two independently regulated output voltages, making it an ideal solution for powering various electronic devices.

Key Features:

  • Wide Input Voltage Range: The device can handle input voltages from 2.85 V to 15 V, accommodating a broad spectrum of power sources.
  • Dual Output Channels: It provides two outputs that are independently adjustable, which can be set up either as two positive outputs or one positive and one negative, offering design flexibility.
  • High Efficiency: The converter's high-efficiency operation helps to reduce power loss and improve overall system performance.
  • Compact Package: Encased in a compact 24-lead LFCSP (4 mm x 4 mm), the ADP5071ACPZ-R7 is designed for space-constrained applications.
  • Integrated Switches: It includes integrated power switches, which help to minimize external component count and simplify the design process.
  • Adjustable Switching Frequency: The switching frequency can be adjusted from 300 kHz to 1.4 MHz, allowing designers to optimize the converter for efficiency or component size.

Applications:

The ADP5071ACPZ-R7 is versatile and can be used in a variety of applications, including:

  • Portable and battery-powered devices
  • Industrial and instrumentation systems
  • Medical equipment
  • Communications infrastructure
  • Automotive electronics

Reliability and Support:

Analog Devices Inc. is renowned for its commitment to quality and reliability. The ADP5071ACPZ-R7 is built to meet the high standards expected from industry professionals and comes with comprehensive technical support. Designers can access detailed datasheets, application notes, and design tools to assist in the implementation of this converter into their projects.

In summary, the ADP5071ACPZ-R7 from Analog Devices Inc. is a powerful, flexible, and efficient solution for modern electronic designs requiring reliable voltage conversion and regulation. Its compact form factor, combined with its robust feature set, makes it a smart choice for engineers looking to enhance their power management systems.
