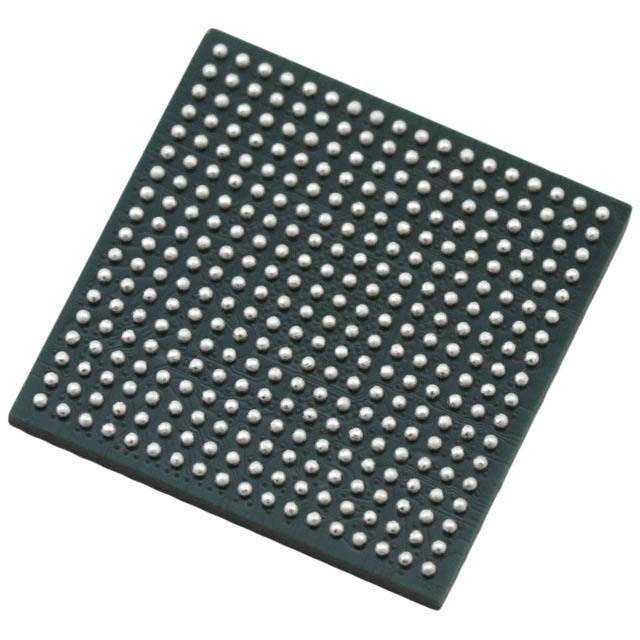

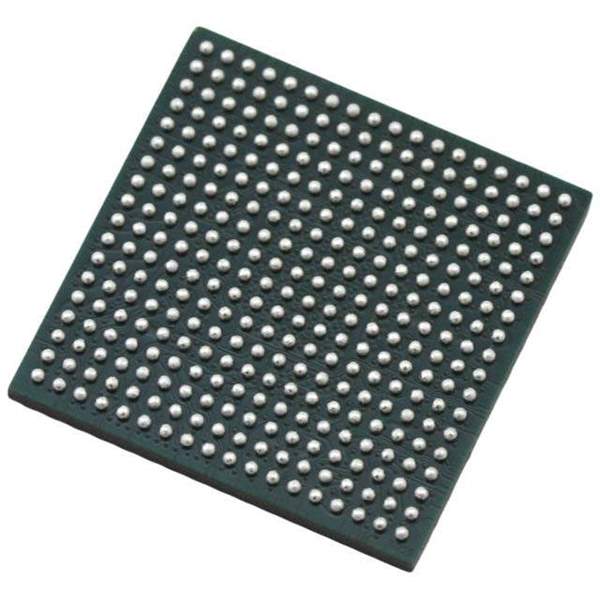

Analog Devices Inc. ADSP-21469KBCZ-4 Digital Signal Processor

The ADSP-21469KBCZ-4 is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed to meet the demanding requirements of audio processing, industrial control, and other embedded systems applications. This state-of-the-art processor is part of the SHARC® family, known for its exceptional core and memory performance, and is well-suited for applications that require high precision and processing power.

Featuring a 32-bit/40-bit floating-point architecture, the ADSP-21469KBCZ-4 ensures accurate and reliable computations, making it ideal for high-fidelity audio systems and advanced digital signal processing tasks. With a clock speed of up to 400 MHz, this DSP delivers up to 2400 MFLOPS (million floating-point operations per second), providing the computational headroom needed for complex algorithms and real-time processing.

The processor is equipped with a variety of peripherals and interfaces to facilitate system integration and connectivity. These include serial ports, SPI, UART, and a parallel peripheral interface. The ADSP-21469KBCZ-4 also supports link port connectivity, enabling direct streaming of data between SHARC processors or with other compatible devices.

One of the standout features of the ADSP-21469KBCZ-4 is its large on-chip memory, which includes both static random-access memory (SRAM) and instruction cache. This allows for efficient data storage and rapid access to critical instructions, thereby enhancing overall system performance. Additionally, the device supports external memory interfaces, allowing for expanded storage and flexibility in system design.

For developers, Analog Devices Inc. provides comprehensive support through software development tools, including the CrossCore® Embedded Studio and VisualDSP++® development environments. These tools offer a rich set of debugging and profiling capabilities to streamline the development process and optimize application performance.

In summary, the ADSP-21469KBCZ-4 from Analog Devices Inc. is a powerful DSP that combines high-speed processing, precision, and a rich set of features. It is an excellent choice for engineers looking to create advanced embedded systems with demanding signal processing requirements.

Key Features:

• 32-bit/40-bit floating-point processing
• Up to 400 MHz clock speed
• 2400 MFLOPS of processing power
• Comprehensive peripheral set for system integration
• Large on-chip memory with external memory interface support
• Software development tool support from Analog Devices Inc.
