Product Overview: ADUM1200ARZ-REEL7

The ADUM1200ARZ-REEL7 is a high-performance, dual-channel digital isolator manufactured by Analog Devices Inc. This component is part of a series designed to offer superior isolation capabilities for a wide range of applications, including industrial, automotive, and healthcare systems. The device utilizes Analog Devices' iCoupler® technology, which combines high-speed CMOS and monolithic air core transformer technology to provide outstanding performance characteristics compared to traditional optocouplers.

Key Features

• Isolation Voltage: The ADUM1200ARZ-REEL7 provides an isolation voltage of 2500 Vrms for 1 minute, ensuring safe operation and protection for sensitive circuitry in high-voltage environments.
• Data Rate: It supports a data rate of up to 10 Mbps, making it suitable for high-speed digital isolation in data communication applications.
• Channels: This component has two independent isolation channels, which can be used in both forward and reverse directions, offering flexibility in bidirectional communication.

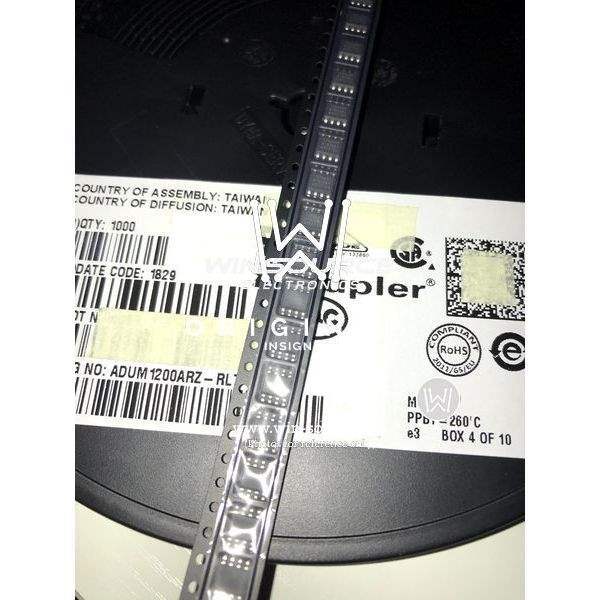

• Package: The device comes in a compact, RoHS-compliant, 8-lead SOIC package, which is ideal for space-constrained applications. The "REEL7" designation indicates that the product is provided in a tape and reel format, facilitating automated manufacturing processes.
• Power Supply: It operates with a wide power supply range from 2.7 V to 5.5 V, accommodating various system power levels.
• Temperature Range: The ADUM1200ARZ-REEL7 is designed to operate over an extended industrial temperature range of -40°C to +105°C, ensuring reliability in harsh environmental conditions.

Applications

The dual-channel configuration and high isolation capabilities of the ADUM1200ARZ-REEL7 make it an ideal choice for a variety of applications, including but not limited to:

• Industrial automation and control systems
• Isolated SPI interfaces
• Medical equipment with stringent safety requirements
• Isolated RS-232/RS-422/RS-485 interfaces
• Power supply isolation

With its robust design and advanced isolation technology, the ADUM1200ARZ-REEL7 from Analog Devices Inc. is a reliable solution for designers looking to enhance the safety and integrity of their electronic systems.
