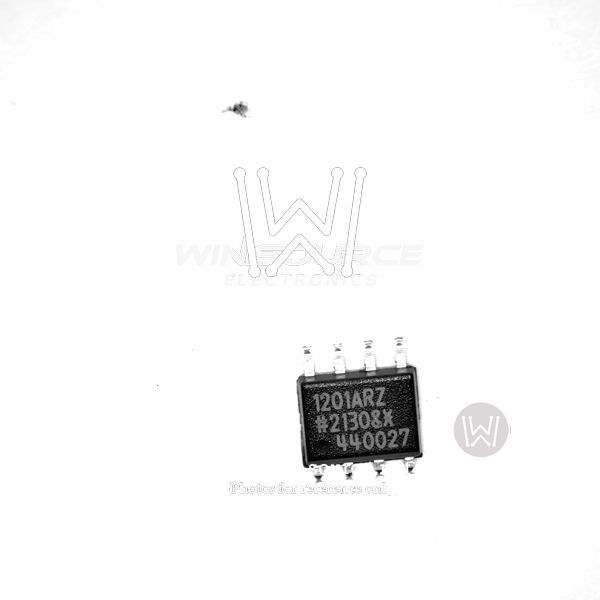

Product Overview: ADUM1201ARZ by Analog Devices Inc.

The ADUM1201ARZ is a cutting-edge digital isolator designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This component is part of the ADuM1201 series, which utilizes Analog Devices' proprietary iCoupler® technology to facilitate signal transfer across a galvanic isolation barrier. This technology enables the ADUM1201ARZ to replace traditional optocouplers and other isolation devices with a solution that offers improved performance, reliability, and power efficiency.

Key Features

• Dual-Channel Isolation: The ADUM1201ARZ features two independent isolation channels, which operate in a bidirectional manner. Each channel is capable of transferring data in both directions, making it highly versatile for a variety of applications.
• High Data Rate: With a data rate of up to 10 Mbps, this digital isolator can handle high-speed digital signals without compromising signal integrity, making it suitable for modern digital communication standards.
• Robust Isolation: The device provides 2500 V RMS isolation for 1 minute per UL 1577, ensuring reliable operation even in environments with high electrical noise or potential voltage spikes.
• Low Power Consumption: The ADUM1201ARZ is designed for low power operation, which reduces power dissipation and helps in designing energy-efficient systems.
• Wide Temperature Range: It operates over a wide temperature range from -40°C to +105°C, catering to industrial-grade requirements.
• Compact SOIC Package: Housed in a small-outline integrated circuit (SOIC) package, the ADUM1201ARZ saves valuable board space while providing robust isolation in a compact form factor.

Applications

The versatility of the ADUM1201ARZ makes it an excellent choice for a broad range of applications. It is commonly used in industrial automation systems, data acquisition systems, power supply control, and other applications where signal integrity and isolation are critical. Moreover, its high-speed capabilities make it suitable for SPI (Serial Peripheral Interface) and other serial communication protocols that require fast data transfer rates.

As an innovative solution from Analog Devices Inc., the ADUM1201ARZ digital isolator represents a significant advancement in the field of signal isolation, offering designers a reliable, efficient, and high-performance component for their electronic designs.
