ADUM1281ARZ-RL7 Digital Isolator by Analog Devices Inc.

The ADUM1281ARZ-RL7 is a robust, high-performance digital isolator designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This component is part of the ADuM1281 series, which are known for their reliability and ability to provide effective isolation in a wide range of electronic applications.

Featuring Analog Devices' proprietary iCoupler® technology, the ADUM1281ARZ-RL7 offers two independent isolation channels in a bidirectional configuration. This technology uses magnetic coupling to transfer digital signals across the isolation barrier, which eliminates the need for traditional optocouplers and their associated limitations, such as wear-out mechanisms and slower speeds.

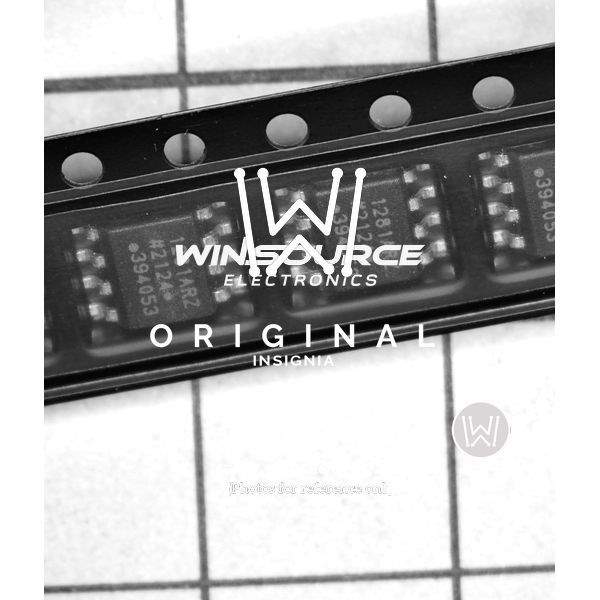

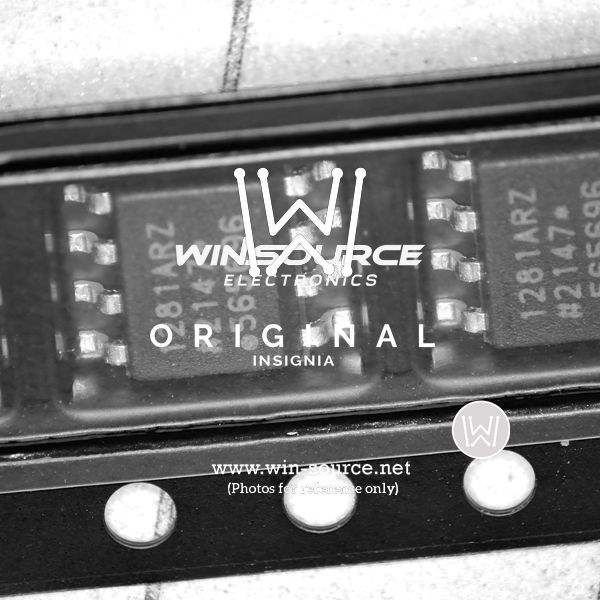

The device is housed in a compact, surface-mount 8-SOIC package, making it an excellent choice for space-constrained applications. Its small footprint does not compromise its performance; the ADUM1281ARZ-RL7 can support data rates up to 1 Mbps, providing a fast and efficient solution for digital signal isolation.

One of the key features of the ADUM1281ARZ-RL7 is its high isolation voltage, rated at 2500 Vrms for 1 minute. This provides a significant safety barrier for sensitive components and ensures reliable operation in environments with high-voltage transients. The product also boasts a wide operating temperature range from -40°C to +125°C, making it suitable for industrial and automotive applications that demand high reliability under extreme conditions.

The device's power supply ranges are flexible, accommodating 3.0 V to 5.5 V, which allows for easy integration into various system designs without the need for additional voltage level translation. This versatility, along with its low power consumption, makes the ADUM1281ARZ-RL7 an energy-efficient choice for isolated communication interfaces.

Conforming to stringent safety standards, the ADUM1281ARZ-RL7 is UL recognized, CSA certified, and IEC 60950-1 and VDE certified, ensuring that it meets the required regulatory approvals for worldwide deployment in safety-critical systems. Whether it's for industrial bus communication, data acquisition systems, or other applications requiring signal isolation, the ADUM1281ARZ-RL7 is a reliable and high-quality solution that engineers can trust.

For further information and full specifications, engineers should consult the datasheet and product support documentation available from Analog Devices Inc.
