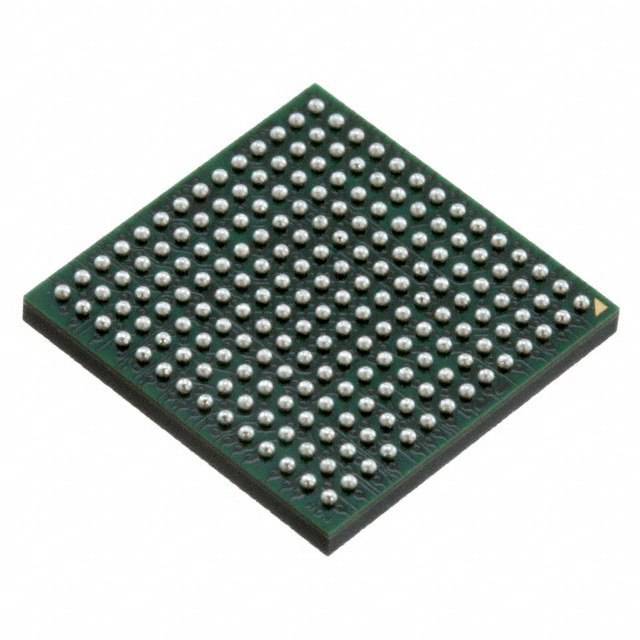

The ADV7186WBBCZ is a state-of-the-art video decoder developed by Analog Devices Inc., an industry leader in signal processing technology. This integrated circuit is designed to provide high-quality video decoding for a wide range of applications, including automotive infotainment systems, video surveillance, and industrial video processing.

Key Features

• Multi-format Support: The ADV7186WBBCZ supports various video formats, including NTSC, PAL, and SECAM, making it versatile for global video applications.
• High-Quality Video: With its advanced 10-bit ADC and proprietary digital 4H comb filter, the device ensures crisp and clear video output, minimizing artifacts and noise.
• Flexible Interface: The decoder provides an array of output formats, including 4:2:2 YCrCb, RGB, and an ITU-R BT.656 compatible mode, facilitating easy integration with other video processing components.
• On-Chip Automatic Gain Control (AGC): This feature ensures optimal signal levels for varying input conditions, enhancing the overall video quality.
• Low Power Consumption: Designed for efficiency, the ADV7186WBBCZ operates with low power requirements, making it suitable for battery-powered devices.

Applications

The ADV7186WBBCZ is ideal for a variety of applications, including:

• Automotive infotainment and rear-seat entertainment systems
• Portable video devices
• Video surveillance systems
• Industrial video processing equipment

Technical Specifications

Parameter Value Resolution 10-bit ADC Supported Video Standards NTSC, PAL, SECAM Output Formats 4:2:2 YCrCb, RGB, ITU-R BT.656 Supply Voltage 1.8V for Digital I/O, 3.3V for Analog Operating Temperature Range -40°C to +85°C Package 64-LFCSP (Lead Frame Chip Scale Package)

For engineers and designers looking for a high-performance video decoding solution, the ADV7186WBBCZ from Analog Devices Inc. offers a perfect blend of quality, reliability, and flexibility. Whether it's for automotive, surveillance, or industrial applications, this decoder is built to meet the rigorous demands of modern video processing tasks.
