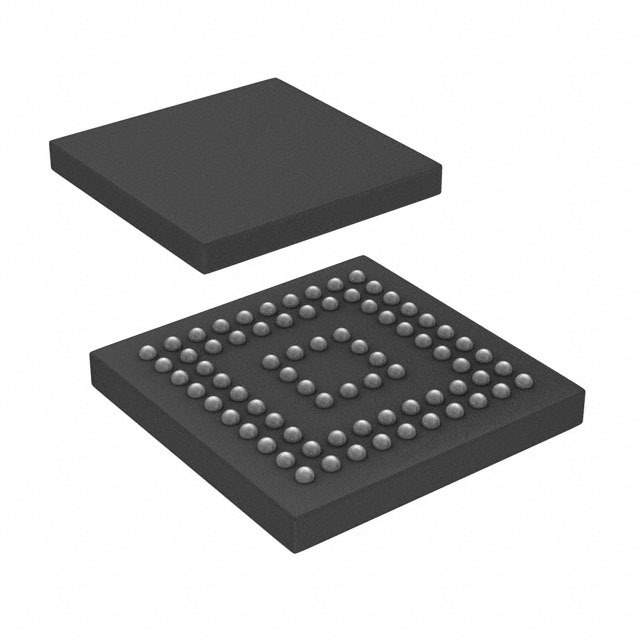

Analog Devices ADV7520NKBBCZ-80 High-Definition Multimedia Interface (HDMI) Transmitter

The ADV7520NKBBCZ-80 is a feature-rich, high-definition multimedia interface (HDMI) transmitter, designed and manufactured by the renowned Analog Devices Inc. This advanced component is engineered to provide a high-quality, compact, and low-power solution for transferring uncompressed digital audio and video signals.

As part of Analog Devices' extensive range of audio and video ICs, the ADV7520NKBBCZ-80 stands out for its ability to support standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. This transmitter is an ideal choice for a broad spectrum of applications, including home theater systems, digital TVs, DVD players/recorders, and other AV products.

The device incorporates the HDMI v1.3 features, supporting deep color modes and a high bandwidth digital content protection (HDCP) system. The HDCP allows secure transmission of protected content as it is required by many digital entertainment content providers. Moreover, the ADV7520NKBBCZ-80 is compatible with HDCP repeaters, providing flexibility in system design.

Key features of the ADV7520NKBBCZ-80 include:

• HDMI v1.3 Compatibility: Ensuring support for the latest audio and video formats.
• Integrated HDCP Encryption: Providing secure management of digital content.
• Low Power Consumption: Designed for power-sensitive applications.
• Compact Design: Its small footprint allows for integration into space-constrained designs.
• Enhanced Audio Support: Including support for up to 8 channels of 192kHz audio, ideal for high-fidelity systems.
• Deep Color Support: Capable of delivering billions of colors for stunning visual quality.
• CEC and x.v.Color Support: For enhanced control and color fidelity.

With its robust set of features, the ADV7520NKBBCZ-80 is a versatile solution that meets the needs of the latest generation of multimedia devices. Designers and engineers will appreciate the ease of integration and the performance benefits that this HDMI transmitter brings to their high-definition applications.

For detailed technical specifications, application notes, and support resources, customers are encouraged to visit the official Analog Devices Inc. website or contact their local sales representative.
