The ADXL103CE-REEL from Analog Devices Inc. is a high precision, low power, single-axis accelerometer with signal conditioned voltage outputs, all on a single, monolithic IC. This cutting-edge sensor is designed for a wide array of applications requiring a balance between performance and power efficiency, such as industrial, medical, and military systems.

Key Features

• High Performance: The ADXL103CE-REEL boasts an impressive measurement range of ±1.7 g with an output sensitivity of 1,000 mV/g, ensuring high resolution and accuracy in capturing motion and inclination data.
• Low Noise: With a typical noise floor of only 110 µg/√Hz, this accelerometer provides clean, reliable measurements, making it ideal for high-precision tasks.
• Temperature Stability: The device features excellent temperature stability with a temperature range of -40°C to +125°C, ensuring consistent performance across a wide range of environmental conditions.
• Flexible Power Supply: It operates on a supply voltage range from 3.0 V to 5.25 V, allowing for versatile integration into various system designs.
• Bandwidth Adjustment: Users can set bandwidth rates via capacitors, which provides the flexibility to optimize the device for specific application requirements.
• Self-Test Feature: The built-in self-test capability allows for an integrity check of the sensor, ensuring proper functioning and reliability.

Applications

• Vehicle dynamics
• Platform stabilization
• Seismic imaging
• Instrumentation
• Medical devices
• Industrial controls

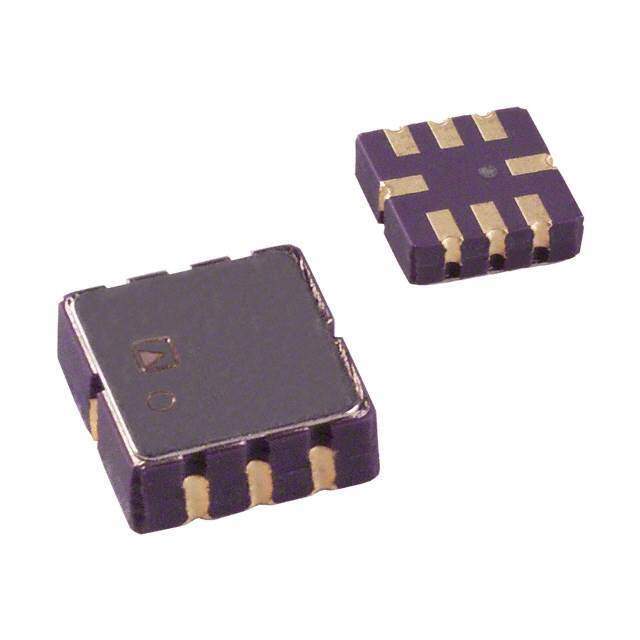

The ADXL103CE-REEL is available in a small, low profile, 5 mm x 5 mm x 2 mm LCC package that is ideal for space-sensitive applications. Its robust design and high shock survivability (up to 10,000 g) make it a reliable choice for even the most demanding environments. Whether you are developing systems that require precise motion analysis, tilt-sensing, or vibration measurement and monitoring, the ADXL103CE-REEL is an excellent choice that combines performance, power efficiency, and versatility.

For detailed specifications, application notes, and additional resources, visit the Analog Devices Inc. website or contact their support team for technical assistance.
