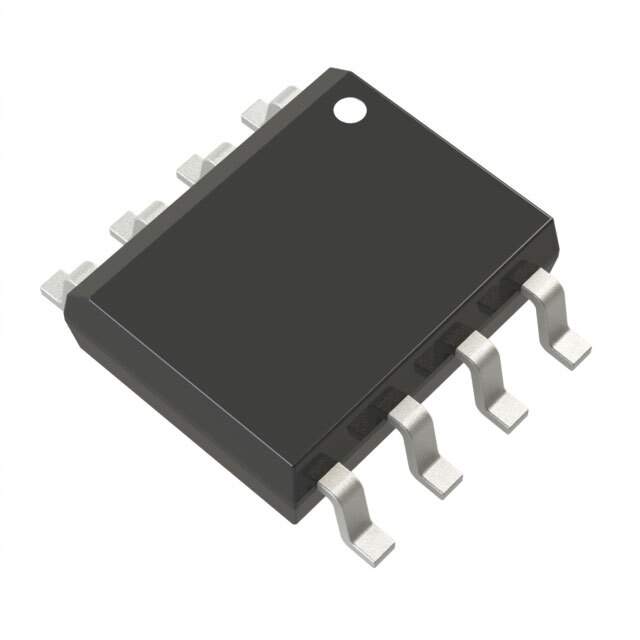

AD8225ARZ-R7

Part No AD8225ARZ-R7
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC INST AMP 1 CIRCUIT 8SOIC / Instrumentation Amplifier 1 Circuit 8-SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear>Amplifiers>Instrumentation, OP Amps, Buffer Amps
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Amplifier Type Instrumentation
Number of Circuits 1
Slew Rate 5V/µs
-3db Bandwidth 900 kHz
Current - Input Bias 500 pA
Voltage - Input Offset 50 µV
Current - Supply 1.05mA
Current - Output / Channel 18 mA
Voltage - Supply Span (Min) 3.4 V
Voltage - Supply Span (Max) 36 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number AD8225
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number AD8225ARZ-R7TR,AD8225ARZ-R7DKR,AD8225ARZ-R7-ND,AD8225ARZ-R7CT
Standard Package 1,000
Win Source Part Number 1319333-AD8225ARZ-R7
Ultra Librarian 3D Model Ultra Librarian AD8225ARZ-R7 CAD Model

Description

Product Overview: AD8225ARZ-R7 from Analog Devices Inc.

The AD8225ARZ-R7 is a high-performance instrumentation amplifier designed and manufactured by Analog Devices Inc., a leader in precision signal processing technology. This particular model is well-suited for a broad range of applications, from medical devices to industrial process controls, thanks to its exceptional accuracy, low noise, and ease of use.

Key Features

  • Precision Performance: The AD8225ARZ-R7 offers a high gain accuracy and low offset voltage, which are critical for precise signal amplification in measurement and instrumentation applications.
  • Single Supply Operation: This device is capable of operating from a single supply range of 4.0 V to 36 V, or dual supplies of ±2.0 V to ±18 V, providing versatility in various power environments.
  • Low Noise: With its low input noise specifications, the AD8225ARZ-R7 ensures a clean signal amplification, making it ideal for applications where signal integrity is paramount.
  • Rail-to-Rail Output: The amplifier provides a rail-to-rail output swing, which maximizes the dynamic range when operating at lower supply voltages.
  • Easy Gain Adjustment: Gain can be set with a single external resistor, allowing for customization and flexibility in a wide range of applications.

Applications

  • Medical instrumentation
  • Industrial process controls
  • Strain gages
  • Transducer interfaces
  • Data acquisition systems

The AD8225ARZ-R7 is provided in a compact SOIC package, which is space-saving and suitable for high-density mounting on printed circuit boards. Its robust design ensures reliable performance even in harsh industrial environments. With its combination of features, the AD8225ARZ-R7 from Analog Devices Inc. is a highly efficient solution for designers seeking a high-quality instrumentation amplifier for their next project.

Whether you are developing a sophisticated medical device or a rugged industrial system, the AD8225ARZ-R7 offers the performance and reliability you need to ensure accurate and stable signal amplification. Its ease of integration and exceptional performance specifications make it a top choice for professionals in electronics design and instrumentation.
