AD9102-ARDZ-EBZ

Part No AD9102-ARDZ-EBZ
Manufacturer Analog Devices Inc.
Catalog Evaluation Boards - Expansion Boards

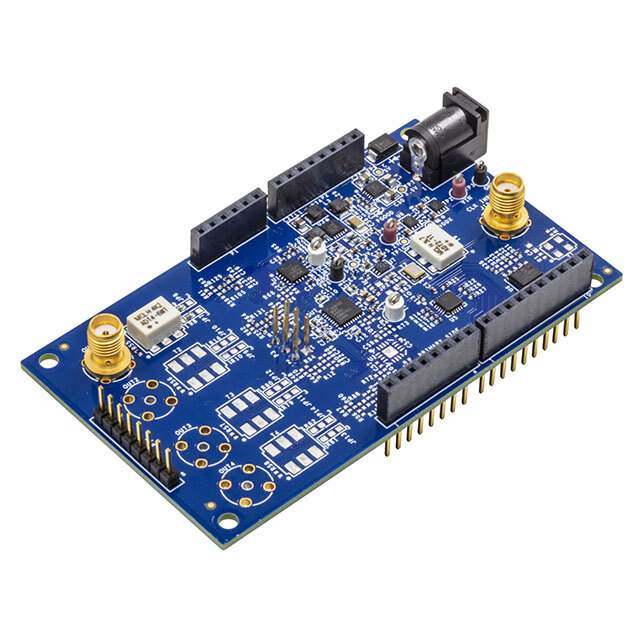

Description 14 BIT SINGLE CHANNEL DAC / AD9102 Digital to Analog Converter (DAC) Data Acquisition Arduino Platform Evaluation Expansion Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Manufacturer Analog Devices Inc.
Packaging Bulk
Platform Arduino
Type Data Acquisition
Function Digital to Analog Converter (DAC)
Utilized IC / Part AD9102
Contents Board(s)
Interconnect System Arduino R3 Shield
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Part Number 505-AD9102-ARDZ-EBZ,-2735-AD9102-ARDZ-EBZ
Standard Package 1
Win Source Part Number 1317949-AD9102-ARDZ-EBZ
Ultra Librarian 3D Model Ultra Librarian AD9102-ARDZ-EBZ CAD Model

Description

The AD9102-ARDZ-EBZ is a high-performance evaluation board offered by Analog Devices Inc., designed to showcase the capabilities of the AD9102 Digital to Analog Converter (DAC) integrated circuit. The AD9102 is a sophisticated mixed-signal device that combines a dynamic waveform generator with a programmable interpolating filter, making it an ideal solution for complex waveform generation in a variety of applications such as medical instrumentation, signal generators, and communication systems.

Key Features

  • High Resolution: The AD9102 features a 14-bit DAC that ensures high-fidelity waveform reproduction.
  • Complex Waveform Generation: With its on-chip memory and advanced waveform generation capabilities, users can create intricate patterns and signals.
  • Flexible Interpolation: The programmable interpolating filter allows for increased output sampling rates, which enhances signal quality.
  • Integrated Pattern Streaming: The device supports direct streaming of waveform data, enabling continuous and non-repetitive signal generation.

Board Specifications

The AD9102-ARDZ-EBZ evaluation board is designed for ease of use, featuring a user-friendly interface that allows for seamless integration into existing systems. It is equipped with a variety of connectivity options, including an FMC connector that makes it compatible with FPGA development boards.

Software Support

Analog Devices provides comprehensive software support for the AD9102-ARDZ-EBZ, including drivers and reference code to help users quickly get started with their waveform generation projects. The provided software tools allow for easy configuration and customization of the DAC's settings to meet specific application requirements.

Applications

The versatility of the AD9102-ARDZ-EBZ makes it suitable for a wide range of applications, including:

  • Automated Test Equipment (ATE)
  • Wireless Infrastructure
  • Direct Digital Synthesis (DDS) systems
  • Instrumentation and Control Systems

Ordering Information

To order the AD9102-ARDZ-EBZ evaluation board or to learn more about its capabilities, visit the Analog Devices website or contact their sales representatives. The board is an invaluable tool for engineers and developers looking to leverage the power of the AD9102 DAC for advanced waveform generation tasks.
