ADM8832ACPZ-REEL7 - High-Efficiency Charge Pump LED Driver

The ADM8832ACPZ-REEL7 is a cutting-edge LED driver component manufactured by Analog Devices Inc., a leader in high-performance analog technology. Designed specifically for driving white LEDs, this device is an ideal choice for portable battery-powered applications due to its high efficiency and low power consumption.

The ADM8832ACPZ-REEL7 operates on a charge pump principle, which allows it to efficiently convert input voltage to a higher output voltage necessary to drive LEDs. It is capable of driving up to six white LEDs in series, ensuring consistent brightness and performance. This makes it perfect for applications in backlighting of LCD displays in mobile phones, PDAs, digital cameras, and other portable devices where space is at a premium and efficient power use is crucial.

One of the key features of this LED driver is its ability to automatically switch between 1x, 1.5x, and 2x modes, depending on the LED forward voltage requirements relative to the input voltage. This ensures optimal efficiency across a range of input voltages and LED forward voltage variations, which helps to prolong battery life in portable applications.

The ADM8832ACPZ-REEL7 also incorporates a range of safety features to protect both the device and the LEDs it drives. It includes over-voltage protection, thermal shutdown, and built-in soft-start functionality to limit inrush current during turn-on. These features contribute to the reliability and longevity of the device.

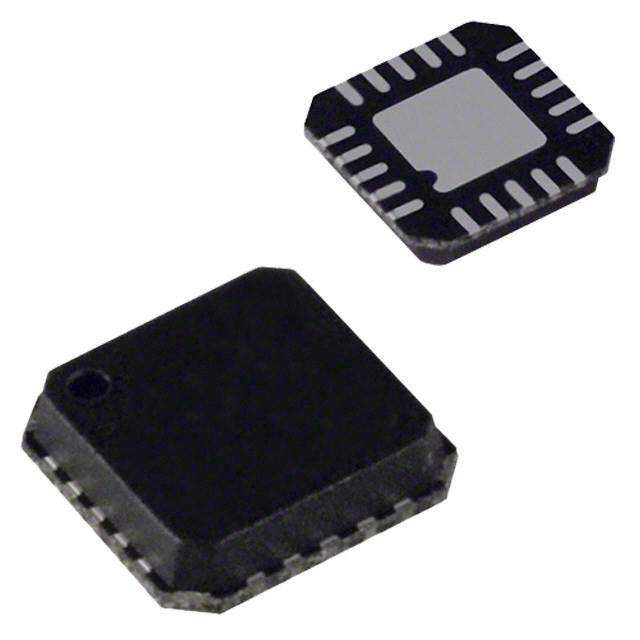

This LED driver comes in a compact 3x3 mm 16-lead LFCSP (Lead Frame Chip Scale Package), which is highly suitable for space-constrained applications. The device is also available on a 7-inch reel (REEL7), which facilitates easy integration into automated manufacturing processes, thereby reducing assembly costs and time.

In summary, the ADM8832ACPZ-REEL7 from Analog Devices Inc. is an advanced, high-efficiency LED driver that offers excellent performance for powering white LEDs in portable devices, with a focus on energy saving and device protection.
