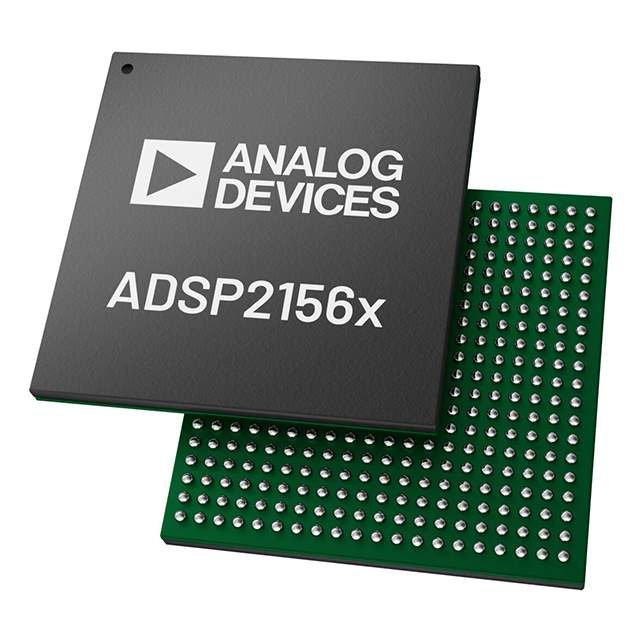

Product Overview: ADSP-21567BBCZ8 - Analog Devices Inc.

The ADSP-21567BBCZ8 is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed to meet the demanding needs of advanced audio, automotive, and industrial applications. This processor is part of the SHARC® family, which is renowned for its efficient data processing and exceptional core performance.

At the heart of the ADSP-21567BBCZ8 is a 32-bit super Harvard architecture that combines dual-core processing capabilities with Analog Devices' unique Super Harvard Architecture Single Instruction, Multiple Data (SIMD) computational engine. This allows the processor to deliver up to 24 GFLOPs of peak performance, making it an ideal choice for applications requiring intensive signal processing tasks such as audio processing, sensor fusion, and real-time analytics.

The processor is equipped with 1MB of on-chip L1 SRAM, which can be configured as 512kB of instruction memory and 512kB of data memory, or as a full 1MB of shared memory, providing developers with flexibility in memory usage. Additionally, it features an integrated L2 cache, which enhances system performance by reducing memory latency during critical operations.

Connectivity and peripheral support are also key features of the ADSP-21567BBCZ8. It offers a range of interfaces including SPI, UART, CAN, and I2C, as well as a high-speed USB 2.0 interface for seamless communication with other devices. For audio applications, the processor includes a flexible 32-channel DMA controller that supports a variety of audio interfaces, such as I2S and TDM.

The ADSP-21567BBCZ8 is designed with power efficiency in mind, featuring multiple power-down modes to reduce energy consumption when the processor is idle or in low-power states. It is available in a 184-ball CSP_BGA package, ensuring a compact footprint for space-constrained designs.

With its robust processing capabilities, extensive memory architecture, and comprehensive peripheral set, the ADSP-21567BBCZ8 from Analog Devices Inc. is a powerful solution for developers looking to push the boundaries of digital signal processing in their products.
