The HMC344LH5 is a high-performance, non-reflective Single Pole Four Throw (SP4T) switch designed by Analog Devices Inc., a leader in the semiconductor industry. This switch operates over a wide frequency range from DC to 50 GHz, offering exceptional versatility for various applications in the microwave and RF domains.

Key Features

• Frequency Range: The HMC344LH5 operates effectively across a broad spectrum, from DC to 50 GHz, making it suitable for a wide array of RF and microwave applications.
• Insertion Loss: With a low insertion loss of typically 2.5 dB at 50 GHz, this switch maintains signal integrity, ensuring minimal attenuation during signal routing.
• Isolation: It offers high isolation between channels, typically 40 dB at 50 GHz, reducing signal crosstalk and enhancing the performance of the system it's integrated into.
• Non-reflective Design: The non-reflective nature of the switch minimizes signal reflections, which is crucial for maintaining the quality of high-frequency signals.
• Control Voltage: The switch operates with a +5V control voltage, allowing for easy integration with most standard logic families.

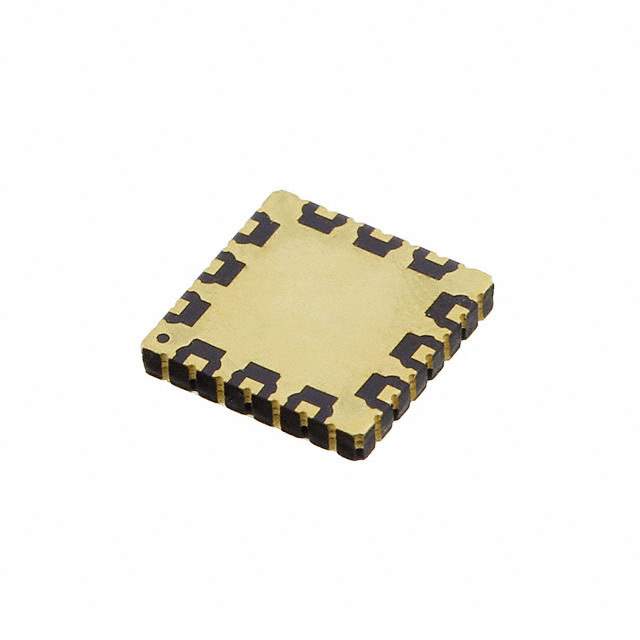

• Package: Enclosed in a compact 5x5 mm surface-mount leadless package (LH5), the HMC344LH5 is designed for space-constrained applications and is compatible with standard automated assembly processes.

Applications

The versatility of the HMC344LH5 makes it suitable for a variety of applications, including:

• Test instrumentation and measurement systems
• Military and space
• Telecommunications infrastructure
• Satellite communications
• Fiber optic systems

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability. The HMC344LH5 is manufactured to meet the highest industry standards, ensuring consistent performance and durability for the most demanding applications.

Conclusion

With its broad frequency range, low insertion loss, high isolation, and compact package, the HMC344LH5 from Analog Devices Inc. stands out as a superior choice for designers seeking a reliable and high-performance SP4T switch for their RF and microwave systems.
