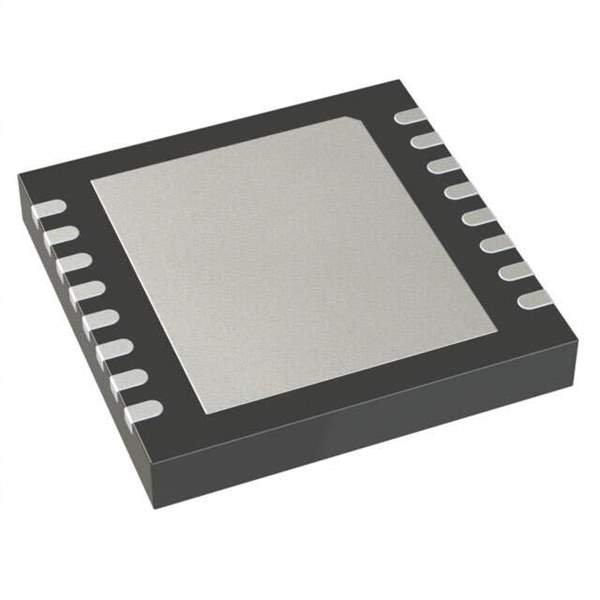

Product Overview: LT3021EDH-1.5#TRPBF by Analog Devices Inc.

The LT3021EDH-1.5#TRPBF is a high-performance, low-dropout linear regulator (LDO) from Analog Devices Inc., designed to deliver a fixed output voltage of 1.5V. This LDO regulator is part of the LT3021 series, known for their stability, reliability, and efficiency in various applications. The device comes in a compact, 8-lead DFN package, which is ideal for space-constrained applications.

With a wide input voltage range from 1.8V to 20V, the LT3021EDH-1.5#TRPBF is versatile and can cater to a broad spectrum of power supply requirements. It is capable of providing an output current up to 500mA, making it suitable for powering a diverse set of devices, from sensitive RF and analog circuits to microprocessors and digital systems.

The LT3021EDH-1.5#TRPBF boasts excellent features, such as low dropout voltage, which ensures efficient operation even when the input voltage is close to the output voltage. This characteristic is particularly beneficial in battery-powered devices, where maximizing battery life is crucial. The low quiescent current of the regulator also contributes to its energy-efficient performance.

Thermal performance is another strong point for this LDO. It is designed with an internal thermal limit to protect the device under over-temperature conditions. Additionally, the LT3021EDH-1.5#TRPBF offers fast transient response and a very low output noise, making it an excellent choice for noise-sensitive applications such as audio and precision instrumentation.

Other notable features include protection mechanisms like overcurrent and reverse battery protection, which safeguard the device and the load from various fault conditions. The regulator also supports stable operation with low-ESR ceramic capacitors, which reduces the size and cost of the external components required.

In summary, the LT3021EDH-1.5#TRPBF from Analog Devices Inc. is a high-quality, fixed-output LDO regulator that offers a combination of flexibility, efficiency, and protection. Its compact size and robust feature set make it an ideal choice for designers looking to optimize power management in their electronic systems.

For detailed specifications and application guidance, designers should consult the datasheet and support documentation provided by Analog Devices Inc.
