LTC2068IUD#PBF

Part No LTC2068IUD#PBF
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP ZER-DRIFT 4CIRC 16QFN / Zero-Drift Amplifier 4 Circuit Rail-to-Rail 16-QFN (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear>Amplifiers>Instrumentation, OP Amps, Buffer Amps
Manufacturer Analog Devices Inc.
Packaging Tube
Amplifier Type Zero-Drift
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 0.0175V/µs
Gain Bandwidth Product 100 kHz
Current - Input Bias 5 pA
Voltage - Input Offset 1 µV
Current - Supply 7.5µA (x4 Channels)
Current - Output / Channel 51 mA
Voltage - Supply Span (Min) 1.7 V
Voltage - Supply Span (Max) 5.25 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount

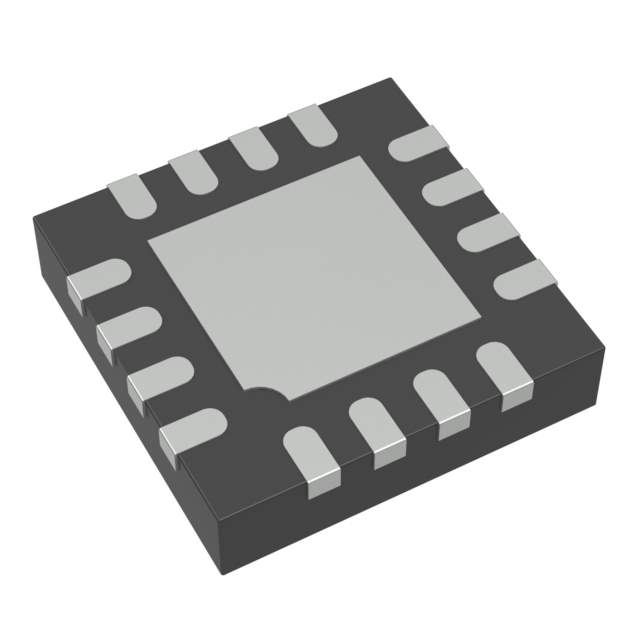

Case / Package 16-WFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number LTC2068
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number -2735-LTC2068IUD#PBF,161-LTC2068IUD#PBF-ND,505-LTC2068IUD#PBF,161-LTC2068IUD#PBF
Standard Package 121
Win Source Part Number 1319388-LTC2068IUD#PBF
Ultra Librarian 3D Model Ultra Librarian LTC2068IUD#PBF CAD Model

Description

Product Overview: LTC2068IUD#PBF

The LTC2068IUD#PBF is a high-precision, zero-drift operational amplifier designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This op-amp is part of the LTC2068 series, which is known for its low power consumption and high accuracy, making it an ideal choice for a wide range of applications including sensor signal conditioning, medical instrumentation, and battery-powered devices.

Key Features

  • Zero-Drift Architecture: The LTC2068IUD#PBF features a unique zero-drift architecture that provides continuous self-calibration, ensuring offset voltage is minimized over time and temperature. This results in exceptional DC precision with a maximum input offset voltage of just 5 µV at 25°C and a maximum input offset drift of 0.02 µV/°C, making it perfect for applications requiring high stability.
  • Low Power Consumption: With a supply current of only 1.3 mA (max), this op-amp is optimized for battery-powered and portable applications where power efficiency is crucial.
  • Wide Supply Range: The device operates with a supply voltage range from 2.7V to 5.5V, allowing for flexibility in various circuit designs.
  • EMI Rejection: The LTC2068IUD#PBF incorporates enhanced EMI rejection features to ensure stable performance in environments with high electromagnetic interference.
  • Extended Temperature Range: This product is specified for operation from -40°C to 125°C, suitable for industrial and automotive applications that demand reliable performance under extreme conditions.

Package and Quality

The LTC2068IUD#PBF comes in a compact 10-lead DFN (3mm × 3mm) package, which is RoHS compliant and designed to save board space. Analog Devices Inc. is committed to high-quality standards, and this product is no exception, with rigorous testing to ensure performance and reliability.

Applications

Due to its precision and low power features, the LTC2068IUD#PBF is ideal for a variety of applications, including:

  • Precision instrumentation
  • Temperature measurements
  • Electronic scales and sensor amplifiers
  • Automotive control systems
  • Battery management
  • Portable medical devices

With its combination of accuracy, low power, and robustness, the LTC2068IUD#PBF from Analog Devices Inc. stands out as a reliable choice for designers looking to enhance their electronic systems.
