Product Overview: LTC3114HFE-1#TRPBF

The LTC3114HFE-1#TRPBF is a high-performance, buck-boost DC/DC converter designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This versatile power management integrated circuit (PMIC) is engineered to provide a stable and efficient power conversion in a wide range of applications, from portable devices to industrial and automotive systems.

Featuring a 4-switch, synchronous buck-boost topology, the LTC3114HFE-1#TRPBF maintains output voltage regulation with input voltages above, below, or equal to the output voltage, making it ideal for applications with varying power supplies. The converter operates over a wide input voltage range of 2.7V to 15V and provides an adjustable output voltage from 2.5V to 14V, which can deliver up to 5A of continuous output current.

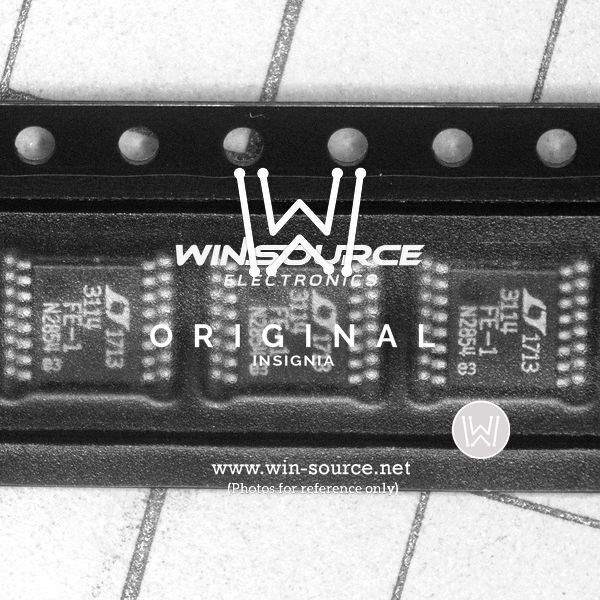

The device is housed in a compact 20-lead TSSOP package with an exposed pad for enhanced thermal performance. Its high efficiency, up to 95%, is achieved through the use of low RDS(ON) internal switches. The LTC3114HFE-1#TRPBF also features programmable switch frequency from 400kHz to 2MHz, enabling the optimization of efficiency and external component size.

Robust protection features are integrated into the LTC3114HFE-1#TRPBF to ensure system reliability. These include input and output overvoltage protection, over-temperature protection, and short-circuit protection. The device also features a programmable soft-start function to limit inrush current during startup.

With its wide input voltage range, high output current capability, and comprehensive protection features, the LTC3114HFE-1#TRPBF is a highly flexible and reliable solution for demanding power conversion applications. Whether in a battery-powered portable device, an automotive application, or an industrial setting, this converter is designed to meet stringent performance requirements while simplifying system design.

Analog Devices Inc. provides extensive technical support and documentation, ensuring that integrating the LTC3114HFE-1#TRPBF into your design is as seamless as possible.
