Analog Devices Inc. LTC3618EFE: High-Efficiency, Dual Monolithic Synchronous Step-Down DC/DC Converter

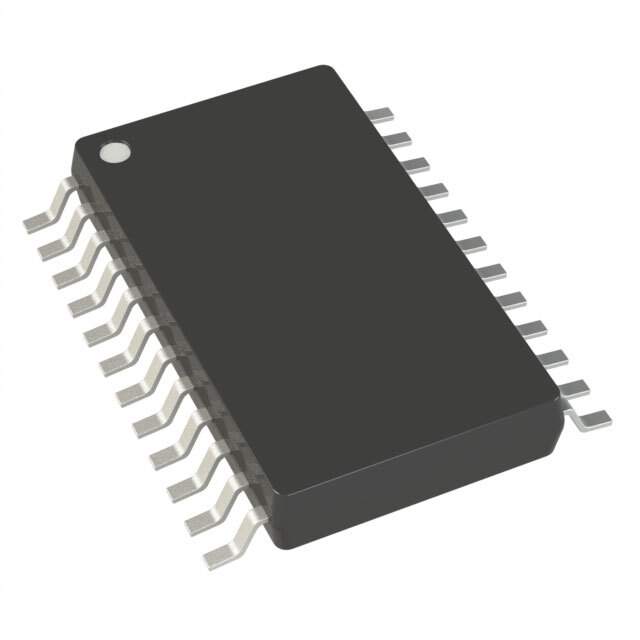

The LTC3618EFE from Analog Devices Inc. is a high-performance, dual-channel monolithic synchronous buck regulator that incorporates a constant frequency, current mode architecture. Designed to cater to a variety of applications, this device is capable of delivering up to 4A of continuous output current per channel at output voltages as low as 0.6V. The LTC3618EFE is housed in a compact 20-lead thermally enhanced TSSOP package, making it a space-efficient solution for dense circuit boards.

One of the key features of the LTC3618EFE is its wide input voltage range of 2.25V to 5.5V, which makes it suitable for single Li-Ion batteries, multi-cell Alkaline/NiMH applications, and other standard power supplies. The internal switch architecture is optimized for efficiency, with up to 95% efficiency being achievable. This allows for minimal heat generation and excellent thermal performance, which is crucial in power-sensitive designs.

The LTC3618EFE also offers selectable operating modes. Users can choose between Burst Mode operation for high efficiency at low output currents or forced continuous mode for noise-sensitive applications. Additionally, the device features a low dropout operation, ensuring the output voltage is maintained even when the input voltage drops close to the output voltage.

With its adjustable switching frequency from 300kHz to 4MHz, designers can optimize the LTC3618EFE for efficiency or component size. Higher frequency operation allows for the use of smaller inductors and capacitors, resulting in a more compact power supply design. Moreover, the phase-lockable frequency (from 300kHz to 3MHz) provides additional flexibility and can help to minimize interference with sensitive RF or audio circuitry.

Other notable features include internal soft-start to minimize inrush current during startup, overvoltage protection, and power good indicators for each channel. The LTC3618EFE is also robust, with over-temperature protection and short-circuit protection, ensuring reliable operation under adverse conditions.

In summary, the LTC3618EFE from Analog Devices Inc. is a versatile and efficient solution for dual-channel power supply designs, offering high efficiency, a wide input voltage range, and a flexible feature set to meet the needs of various applications.
