Analog Devices Inc. LTC3884ERHE-1#PBF Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

The LTC3884ERHE-1#PBF from Analog Devices Inc. is a sophisticated dual output polyphase synchronous step-down DC/DC controller that incorporates advanced digital power system management (PSM) capabilities. This high-performance product is designed to efficiently convert a high input voltage to a lower output voltage with precise control, making it an ideal choice for complex power systems requiring reliability and flexibility.

This controller is equipped with an EEPROM for storing user configurations and fault logging, which simplifies the design process and enhances system reliability. The LTC3884ERHE-1#PBF is designed for a wide range of applications, including distributed power systems, telecommunications, industrial, and FPGA/DSP/ASIC power supplies.

Key features of the LTC3884ERHE-1#PBF include:

• Wide Input Voltage Range: Capable of handling input voltages from 4.5V to 38V, this controller can support a variety of power sources and systems.
• Dual Output Channels: Each channel is capable of driving a polyphase power stage, effectively doubling the available output current and spreading thermal load.
• Integrated Digital Power System Management: The LTC3884ERHE-1#PBF comes with a PMBus-compliant serial interface, which allows for real-time monitoring and control of the power supply parameters.
• High-Efficiency Operation: Its high efficiency reduces power loss and heat, improving the overall performance and lifespan of the system.

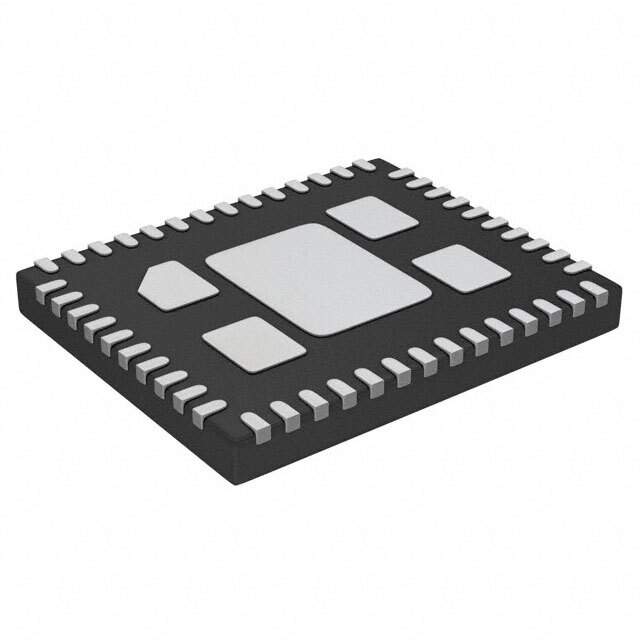

• Robust Thermal Performance: Housed in a thermally enhanced 40-lead QFN package, it provides excellent thermal performance suitable for high-power applications.
• Configurability and Programmability: Users can configure and program important parameters such as output voltage, margining, and supervisory limits, which can be adjusted on-the-fly or stored in the EEPROM.

The LTC3884ERHE-1#PBF also includes advanced features such as differential output voltage sensing for precise regulation, phase-lockable switching frequency (250kHz to 780kHz), and selectable burst mode operation for improved light load efficiency. With its robust feature set and digital power system management, this controller is an excellent choice for designers looking to optimize their power systems for performance, flexibility, and reliability.

For detailed technical specifications, application guides, and support resources, please visit the Analog Devices Inc. website or contact their technical support team.
