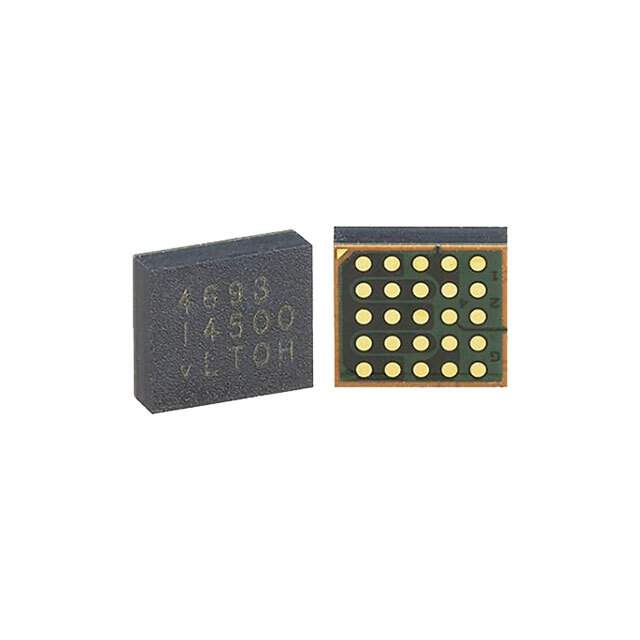

Product Overview: LTM4693IV#PBF

The LTM4693IV#PBF is a cutting-edge, ultra-thin step-down µModule (micro-module) regulator from Analog Devices Inc., which is renowned for its innovation in the field of power management technology. This high-performance module integrates the inductor, power switches, DC/DC controller, and compensation circuitry into a compact LGA package, providing a space-efficient power management solution for a wide range of applications.

Key Features

• Integrated Solution: The LTM4693IV#PBF combines several components into a single package, simplifying design and reducing the overall footprint on the PCB.
• High Efficiency: With an advanced design that ensures minimal power loss during conversion, this µModule regulator operates with high efficiency, making it suitable for energy-sensitive applications.
• Wide Input Voltage Range: The device supports an input voltage range from 3.1V to 20V, accommodating a variety of power sources and system voltages.
• Adjustable Output Voltage: The output voltage can be precisely adjusted from 0.5V to 5.5V, providing versatility to power different ICs and peripherals.
• Compact Size: The LGA package measures just 6.25mm x 6.25mm x 2.42mm, making it ideal for space-constrained applications.

Applications

The LTM4693IV#PBF is designed for use in a multitude of electronic devices where efficient power conversion and space economy are crucial. Its typical applications include:

• Telecommunications and networking equipment
• Industrial and medical equipment
• Automotive systems
• Data storage and computing systems
• Portable and battery-powered devices

Quality and Reliability

Analog Devices Inc. is committed to delivering high-quality products, and the LTM4693IV#PBF is no exception. It is designed to meet stringent performance standards and is built with reliability in mind, ensuring stable operation over its intended lifespan, even under varying environmental conditions.
