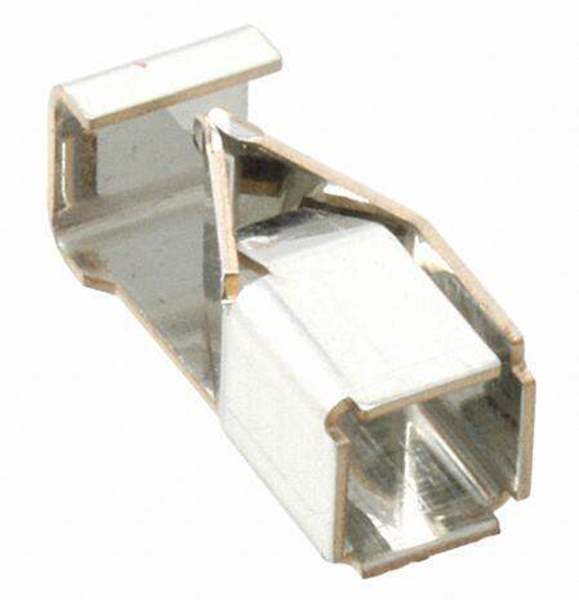

709296001004006 KYOCERA AVX
Same model may have multiple batches, images only for reference.

709296001004006

Part No 709296001004006
Manufacturer Kyocera Kinseki Corpotation
Catalog Solid State Lighting Connectors
Description CONN SSL POKE-IN CONT 12-20AWG
Datasheet
709296001004006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer KYOCERA AVX
Product Status Active
Style Board to Cable/Wire
Connector Type Contact, Poke-In Wire
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Operating Temperature -40°C ~ 125°C
Voltage Rating 300 V
Category Connectors, Interconnects Solid State Lighting Connectors Solid State Lighting Connector Contacts
Win Source Part Number WS1210346-709296001004006
Ultra Librarian 3D Model Ultra Librarian 709296001004006 CAD Model

Description

12-20 AWG SSL Contact, Poke-In Wire Solder Surface Mount, Right Angle
