Same model may have multiple batches, images only for reference.

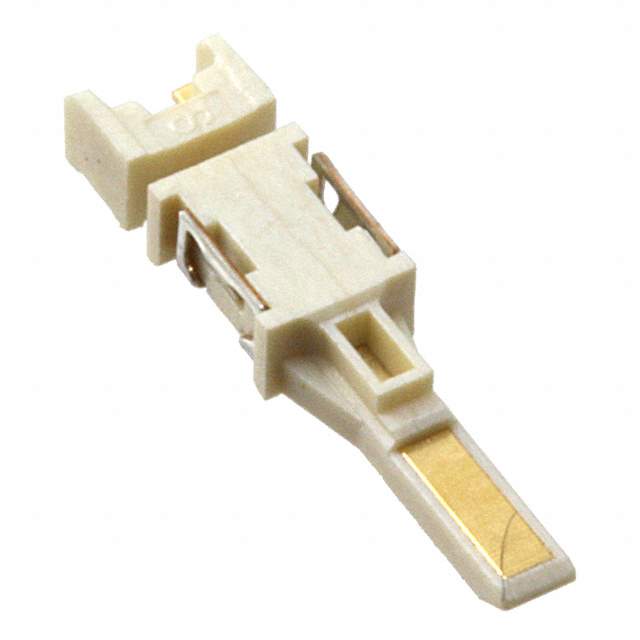

01P-LELSS-GA-TF(HF) Real Image
Same model may have multiple batches, images only for reference.

01P-LELSS-GA-TF(HF)

Part No 01P-LELSS-GA-TF(HF)
Manufacturer JST Sales America Inc.
Catalog Solid State Lighting Connectors
Description CONN SSL PLUG 1POS SOLDER
Datasheet
01P-LELSS-GA-TF(HF) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Style Board to Board
Connector Type Plug
Number of Positions 1
Mounting Surface Mount, Right Angle
Termination Solder
Housing Color Natural
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C to 105°C
Voltage Rating 100V
Current Rating 1.6A
Win Source Part Number 1000022-01P-LELSS-GA-TF(HF)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 01P-LELSS-GA-TF(HF) CAD Model

Description

The JST Sales America Inc. 1000022-01P-LELSS-GA-TF(HF) is a plug connector with a single position and a solder termination.

  • Voltage Rating: 100V
  • Current Rating: 1.6A
  • Housing Material: Made of liquid crystal polymer (LCP).
  • Housing Color: Natural color
  • Mounting: Surface mountable
  • Mounting Style: Right-angle mounting style
  • Style: Part of the board to board style.
  • Popularity: Medium
  • Operating Temperature: -55°C to 105°C
