Same model may have multiple batches, images only for reference.

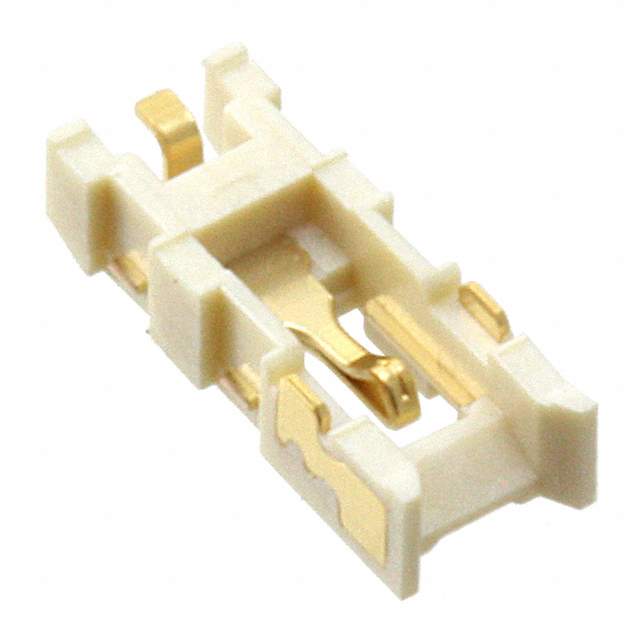

01R-LELSS-GA-TF(HF) Real Image
Same model may have multiple batches, images only for reference.

01R-LELSS-GA-TF(HF)

Part No 01R-LELSS-GA-TF(HF)
Manufacturer JST Sales America Inc.
Catalog Solid State Lighting Connectors
Description CONN SSL RECEPTACLE 1POS SOLDER
Datasheet
01R-LELSS-GA-TF(HF) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Style Board to Board
Connector Type Receptacle
Number of Positions 1
Mounting Surface Mount, Right Angle
Termination Solder
Housing Color Natural
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C to 105°C
Voltage Rating 100V
Current Rating 1.6A
Win Source Part Number 1000023-01R-LELSS-GA-TF(HF)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 01R-LELSS-GA-TF(HF) CAD Model

Description

The JST Sales America Inc. connector is a reliable and high-quality component that is ideal for a wide range of electronic applications.

  • Type: board-to-board receptacle connector
  • Mounting Style: surface mount, right angle
  • Voltage Rating: 100V
  • Current Rating: 1.6A
  • Housing Material: liquid crystal polymer (LCP)
  • Housing Color: natural
  • Termination: gold contacts
  • Temperature Range: -55°C to 105°C
  • Market Status: currently in balance supply and demand status in the open market.
