Product Overview: LTM8052AMPY by Analog Devices Inc.

The LTM8052AMPY is a high-performance, µModule (micromodule) step-down regulator from Analog Devices Inc., designed to deliver precision, efficiency, and versatility for a wide range of applications. This advanced power solution integrates the inductor, power switches, DC/DC controller, and additional supporting components into a compact, surface-mount package, simplifying the design process and reducing time to market.

Key Features

• High Efficiency: The LTM8052AMPY offers a high-efficiency synchronous step-down switching regulator with a wide input voltage range, making it suitable for various input sources from batteries to high-voltage power supplies.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to 10V, providing flexibility to power a broad spectrum of devices and systems.
• Integrated Components: With its integrated design, this µModule includes internal power switches, inductor, and compensation circuitry, which minimizes external components and board space.

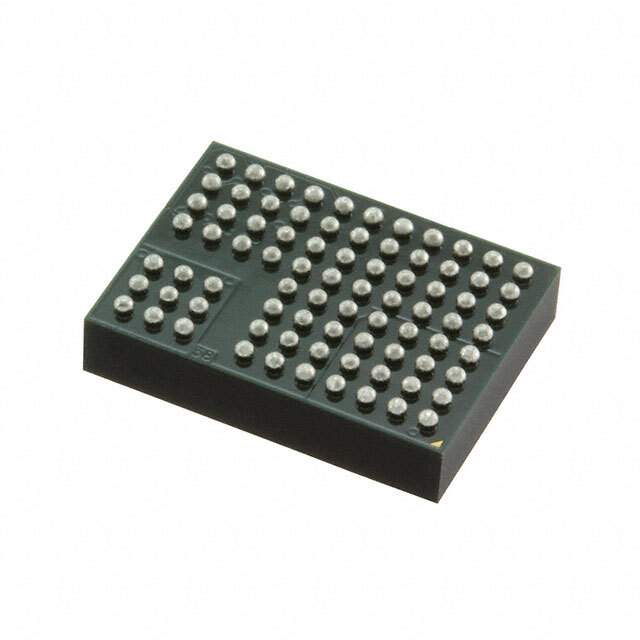

• Robust Thermal Performance: The LTM8052AMPY is housed in a thermally enhanced, over-molded land grid array (LGA) package that ensures efficient heat dissipation and reliable operation even under high power or high ambient temperature conditions.

Applications

The versatility of the LTM8052AMPY makes it an ideal choice for powering FPGAs, DSPs, microprocessors, and general-purpose point-of-load applications. It is particularly well-suited for:

• Telecommunications and Networking Equipment
• Industrial and Automotive Electronics
• Data Storage and Computing Systems
• Medical and Healthcare Devices

Technical Specifications

The LTM8052AMPY supports a wide input voltage range from 6V to 36V and offers up to 2A of continuous output current. Its high switching frequency and selectable Burst Mode® operation enable a balance between efficiency and output ripple, optimizing performance for noise-sensitive applications. Additionally, it features overvoltage, overcurrent, and overtemperature protection, enhancing the safety and reliability of the end system.

Conclusion

Analog Devices Inc.'s LTM8052AMPY is a testament to their commitment to providing innovative power management solutions. Its integration, efficiency, and flexibility make it an excellent choice for designers looking to reduce design complexity while maintaining high performance in their power systems.
