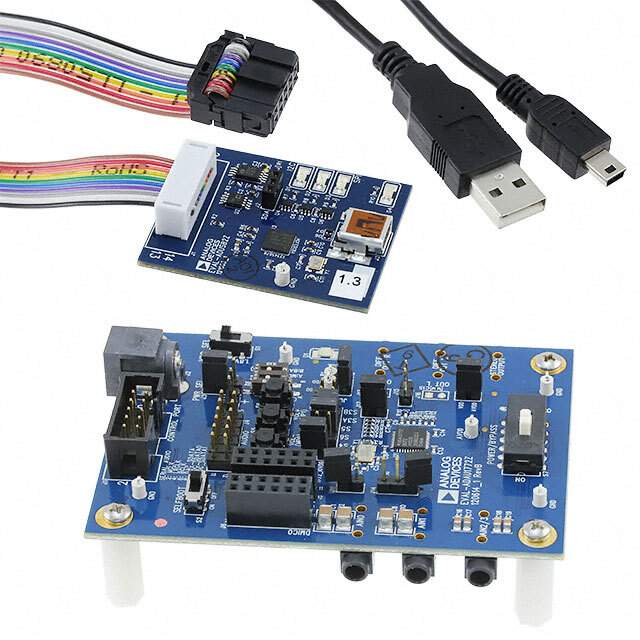

EVAL-ADAU1772Z Evaluation Board from Analog Devices Inc.

The EVAL-ADAU1772Z is a comprehensive evaluation board designed by Analog Devices Inc. to showcase the capabilities of the ADAU1772, a low power, quad-core digital signal processor (DSP) for audio applications. This evaluation board is an essential tool for engineers and audio designers who require a high-performance audio processing solution that is both flexible and power-efficient.

Key Features of the ADAU1772:

• Quad DSP Core: The ADAU1772 features a 28-/56-bit audio DSP engine, enabling complex audio signal processing while maintaining high audio quality.
• Low Power Consumption: Designed for battery-powered applications, the ADAU1772 provides high efficiency, helping to extend the battery life of portable devices.
• Integrated Audio ADCs and DACs: The device includes two ADCs and four DACs with a 96 dB signal-to-noise ratio (SNR), allowing for high-quality audio capture and playback.
• Flexible Audio Routing: A configurable signal routing matrix within the ADAU1772 allows for versatile connections between inputs, outputs, and DSP cores.
• Multiple Interfaces: The evaluation board supports I²C and SPI communication protocols for easy interfacing with most microcontrollers and processors.

Benefits of the EVAL-ADAU1772Z Evaluation Board:

• Easy to Use: The EVAL-ADAU1772Z is designed for plug-and-play operation, making it simple for users to start experimenting with the ADAU1772 without a steep learning curve.
• Comprehensive Development Kit: The board comes with all the necessary software tools, including the SigmaStudio™ graphical development tool, which enables quick and intuitive DSP program development.
• Onboard Debugging: Equipped with an onboard USB interface, the evaluation board allows for real-time data streaming and in-system programming, facilitating rapid prototyping and debugging.
• Application Versatility: The EVAL-ADAU1772Z is ideal for a wide range of applications, from noise-cancelling headphones to digital microphones, automotive audio systems, and smart home devices.

Overall, the EVAL-ADAU1772Z from Analog Devices Inc. is a powerful tool for developers looking to harness the audio processing power of the ADAU1772 in a user-friendly and highly adaptable format. Whether for professional audio equipment, consumer electronics, or embedded audio systems, this evaluation board provides the resources needed to create sophisticated audio solutions with ease.
