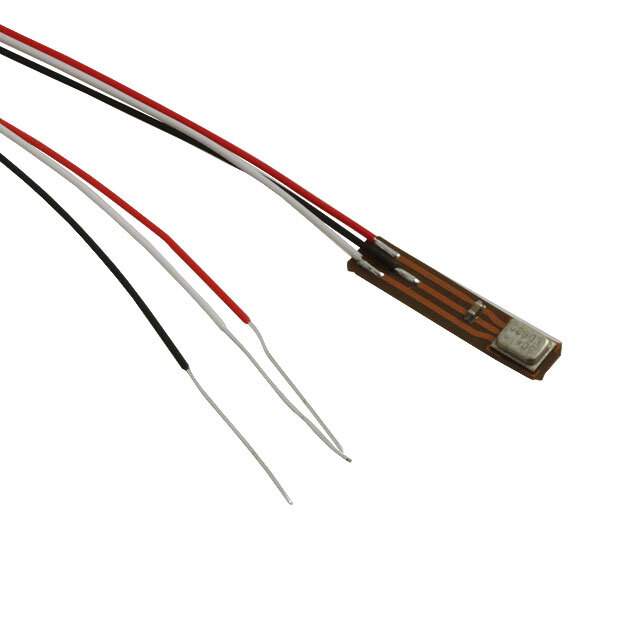

EVAL-ADMP504Z-FLEX Microphone Evaluation Board

The EVAL-ADMP504Z-FLEX is a high-performance evaluation board presented by Analog Devices Inc., designed to showcase the capabilities of the ADMP504, a high-quality, ultra-low noise, analog output bottom-ported omnidirectional MEMS microphone. This evaluation board is an excellent tool for designers and engineers to expedite the development process of audio applications, ranging from smart home devices to industrial noise-cancelling systems.

Key Features

• High SNR: The ADMP504 microphone boasts a signal-to-noise ratio (SNR) of 65 dBA, which is ideal for applications requiring clear audio capture in noisy environments.
• Ultra-Low Noise: With an exceptionally low noise floor of 29 dBA SPL, the ADMP504 ensures the capture of high-fidelity audio signals without unwanted background noise.
• Wide Frequency Response: The microphone offers a wide frequency response range from 100 Hz to 15 kHz, making it suitable for a broad spectrum of audio applications.
• Flexible Design: The EVAL-ADMP504Z-FLEX board is designed with flexibility in mind, featuring a small form factor and lightweight construction, which allows for easy integration into various design prototypes.

Applications

The EVAL-ADMP504Z-FLEX serves a diverse array of applications, including but not limited to:

• Smartphones and tablets
• Smart home devices, such as smart speakers and security systems
• Wearable devices
• Teleconferencing systems
• Industrial and automotive audio systems

Easy to Use

The evaluation board is user-friendly, requiring minimal setup to get started. It is designed to plug directly into standard breadboards and development platforms, ensuring a seamless integration into existing projects. The board also comes with comprehensive documentation, including a detailed datasheet and application notes, to support developers in maximizing the use of the ADMP504 microphone's capabilities.

With its combination of high-performance audio sensing and ease of use, the EVAL-ADMP504Z-FLEX from Analog Devices Inc. is an indispensable tool for any audio-related project, delivering quality and reliability that engineers can trust.
