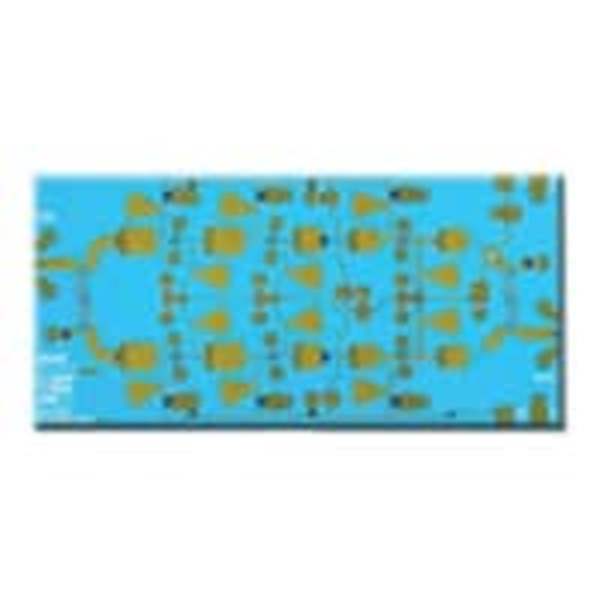

The HMC-ALH509 is a high-performance, broadband, non-reflective Single Pole Four Throw (SP4T) switch designed by Analog Devices Inc. This cutting-edge product is a testament to the company's commitment to providing innovative solutions for RF and microwave applications. The HMC-ALH509 is ideal for diverse applications such as wireless infrastructure, test equipment, and military end uses.

Key Features

• Frequency Range: The switch operates over a broad frequency range, making it versatile for various applications.
• High Isolation: It offers excellent signal isolation, which is crucial for maintaining signal integrity in complex RF systems.
• Low Insertion Loss: The HMC-ALH509 boasts low insertion loss, ensuring minimal signal attenuation during switching.
• Non-Reflective Design: Its non-reflective nature helps to reduce signal reflections that can cause interference and degrade performance.
• High Linearity: The device exhibits high linearity, which is essential for maintaining the fidelity of the signal being switched.
• Robust Packaging: Housed in a compact and rugged package, the HMC-ALH509 is built to withstand challenging environments while maintaining its performance.

Applications

• Wireless infrastructure
• Test and measurement equipment
• Military and space
• Electronic warfare systems
• Communication systems

Technical Specifications

The HMC-ALH509 from Analog Devices Inc. is not only a testament to their engineering expertise but also a crucial component for anyone looking to enhance their RF and microwave systems. Its exceptional performance and reliability make it a preferred choice for industry professionals.
