Product Overview: HMC349LP4CE from Analog Devices Inc.

The HMC349LP4CE is a high-performance, non-reflective SPDT (Single Pole, Double Throw) switch fabricated by Analog Devices Inc., a leader in high-performance analog technology. This switch is designed for applications requiring very fast switching speeds and high isolation. It operates over a broad frequency range from DC to 10 GHz, making it an excellent choice for diverse RF applications.

Constructed with a GaAs (Gallium Arsenide) MESFET process, the HMC349LP4CE exhibits outstanding RF performance. It provides a high isolation of 46 dB typical at 1 GHz, ensuring minimal crosstalk between signals. The switch also boasts a low insertion loss of 1.0 dB typical at 1 GHz, which contributes to maintaining signal integrity and reducing power loss.

One of the key features of the HMC349LP4CE is its fast switching speed. It has a typical switching time of only 2 ns, which allows for rapid signal routing and is particularly beneficial in time-sensitive applications such as test equipment and communication systems. The switch can handle a maximum input power of 23 dBm, providing robust performance for a variety of RF signals.

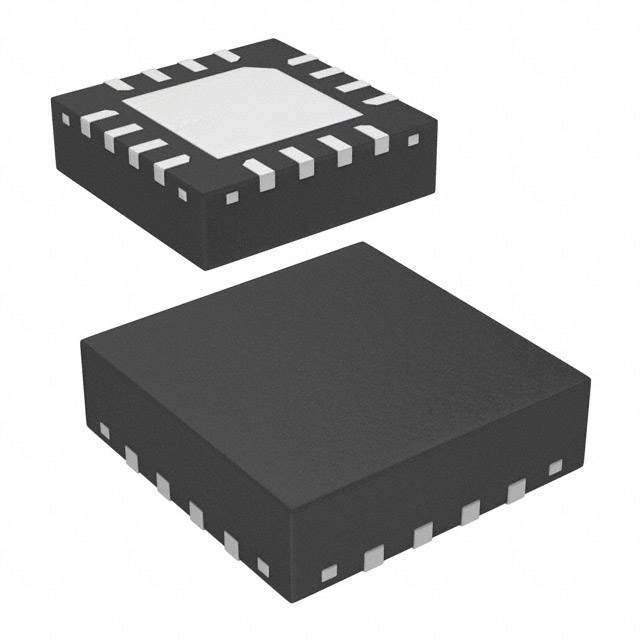

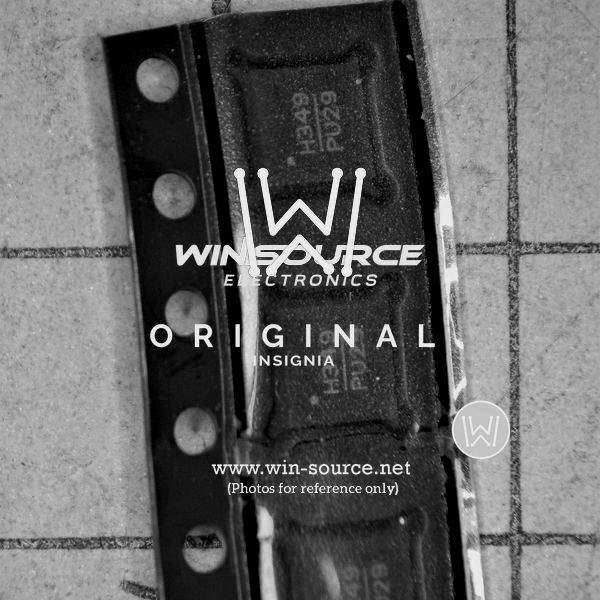

The HMC349LP4CE comes in a compact 4x4 mm QFN (Quad Flat No-lead) package, which is suitable for space-constrained applications. The small footprint and surface-mount design facilitate integration into dense circuit layouts, while the lead-free and RoHS-compliant package ensures environmental compliance.

This switch operates over a temperature range of -40°C to +85°C, making it reliable in a wide range of environmental conditions. Additionally, it features a single positive control voltage from 0 to +5V, simplifying the driving circuitry and power supply requirements. The HMC349LP4CE is a versatile component that provides designers with a high degree of flexibility and performance in their RF signal chain designs.

Overall, the HMC349LP4CE from Analog Devices Inc. is a superior choice for anyone in need of a high-speed, high-isolation, and low-loss RF switch. Its robust performance, coupled with its ease of use and integration, make it an essential component for advanced RF systems.
