The HMC356LP3TR from Analog Devices Inc. is a high-performance, GaAs MMIC SMT I/Q mixer with an integrated LO amplifier. This device is designed to meet the needs of RF and microwave communication systems where high linearity, low noise, and a broad frequency range are required. It is an ideal choice for applications such as wireless infrastructure, point-to-point and point-to-multipoint radios, military systems, and satellite communications.

Key Features

• Frequency Range: The HMC356LP3TR operates over a wide frequency range, making it versatile for various RF applications.
• LO Amplifier: The integrated LO amplifier simplifies the design process by reducing the number of external components needed.
• Conversion Loss: It offers a low conversion loss, which enhances the overall efficiency and performance of the system.
• Linearity: Exhibits excellent linearity, which is crucial for maintaining signal integrity in communication systems.

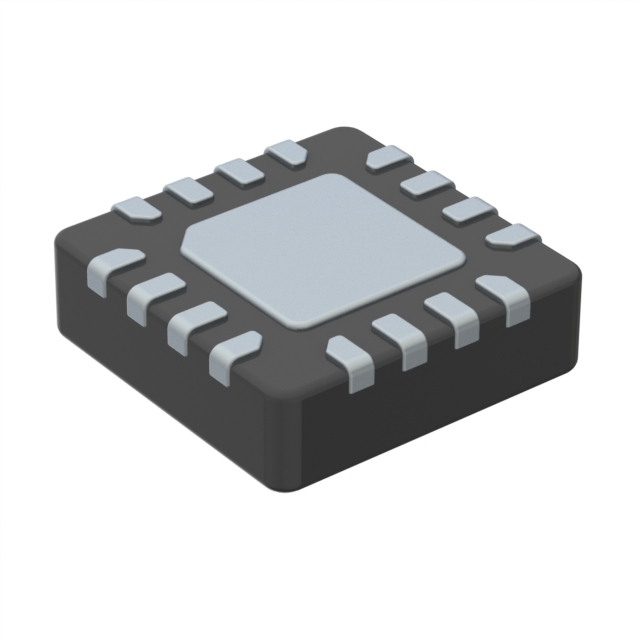

• Package: Comes in a compact 3x3 mm QFN package, which is suitable for space-constrained applications.

Applications

• Wireless infrastructure
• Point-to-point and point-to-multipoint radios
• Military and space systems
• Satellite communications

Product Specifications

Parameter Value Part Number HMC356LP3TR Manufacturer Analog Devices Inc. Frequency Range Specified in datasheet Package / Case 3x3 mm QFN Minimum Operating Temperature Specified in datasheet Maximum Operating Temperature Specified in datasheet

The HMC356LP3TR is a testament to Analog Devices Inc.'s commitment to providing advanced RF and microwave solutions. With its robust feature set and flexible application range, this product is engineered to deliver superior performance in the most demanding environments.
