The HMC606LC5, manufactured by Analog Devices Inc., is a state-of-the-art GaAs MMIC PHEMT Distributed Power Amplifier die that operates from DC to 28 GHz. This high-performance component is designed to deliver exceptional signal fidelity and wide bandwidth, making it an ideal choice for a variety of demanding applications in the RF and microwave domains.

Key Features

• Frequency Range: The HMC606LC5 offers a broad frequency range from DC to 28 GHz, ensuring versatility across multiple applications including point-to-point radios, VSAT, military & space, fiber optics, and test instrumentation.
• Output Power: It provides 16 dBm of output power at 1 dB compression point, ensuring strong signal transmission with minimal distortion.
• Gain: With a high gain of 13 dB, this amplifier can effectively boost the signal strength without the need for additional amplification stages.
• Return Loss: The input and output return loss are 15 dB and 10 dB respectively, indicating good impedance matching and reduced signal reflection.
• Supply Voltage: The HMC606LC5 is designed to operate at a supply voltage of +5V, making it compatible with standard power supply levels in electronic systems.

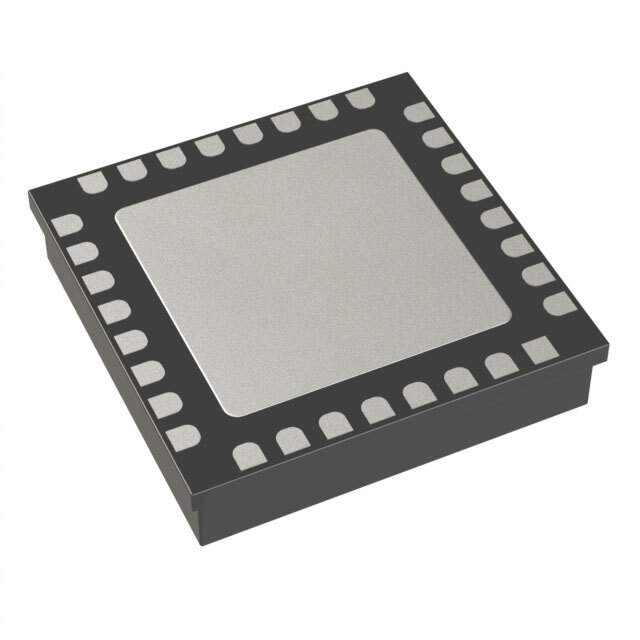

• Package: It is offered in a compact 5x5 mm SMT package, which allows for convenient integration into space-constrained designs.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• VSAT
• Military & Space
• Fiber Optics
• Test Instrumentation

The HMC606LC5 is a testament to Analog Devices Inc.'s commitment to providing high-quality, reliable components for advanced RF and microwave systems. Its robust design and impressive specifications make it a top choice for engineers looking to enhance system performance across a wide range of frequencies.
