Product Overview: LT1461CCS8-4#TRPBF by Analog Devices Inc.

The LT1461CCS8-4#TRPBF is a precision voltage reference component manufactured by Analog Devices Inc., renowned for its reliability and performance in various applications. This high-quality product is part of the LT1461 series, which stands out for its low noise, low dropout, and high output accuracy, making it a perfect choice for precision data conversion in a wide range of electronic systems.

Key Features

• Output Voltage: The device provides a fixed output voltage of 4.096V, which is commonly used for 12-bit or 16-bit analog-to-digital converters (ADCs), ensuring accurate reference voltage for precise data conversion.
• High Accuracy: With an initial accuracy of ±0.05%, the LT1461CCS8-4#TRPBF offers exceptional precision for critical applications where voltage stability is essential.
• Low Temperature Coefficient: The component boasts an excellent temperature coefficient, typically around 10ppm/°C, which means the output voltage remains stable over a wide temperature range.
• Low Dropout Voltage: The low dropout characteristic allows the reference to operate with a minimal difference between the input and output voltages, enhancing efficiency in systems with limited power headroom.
• Low Noise: With a low noise specification, this voltage reference minimizes the impact of electrical noise on system performance, crucial for sensitive applications such as medical equipment or precision measurement instruments.
• Long-Term Stability: Designed for long-term reliability, the LT1461CCS8-4#TRPBF demonstrates excellent long-term voltage stability, ensuring consistent performance throughout the lifespan of the product.

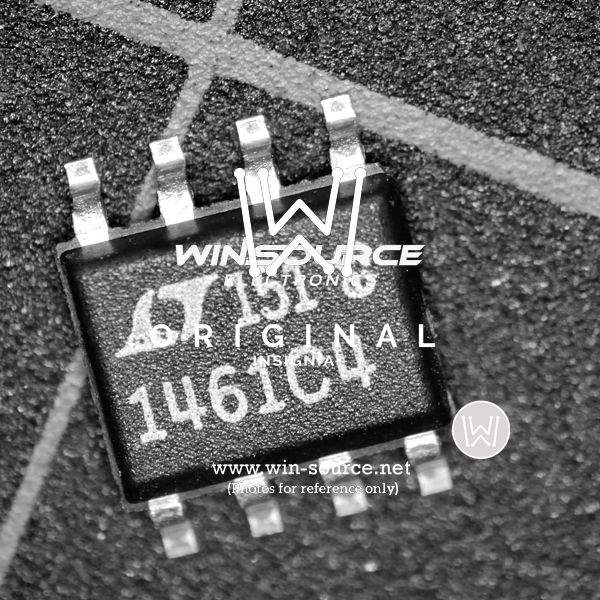

• Package: It is available in an 8-lead SOIC package, which is suitable for surface-mount technology (SMT) and is widely used in compact electronic assemblies.

Applications

The LT1461CCS8-4#TRPBF is ideal for high-precision applications, including:

• High-resolution ADCs and digital-to-analog converters (DACs)
• Industrial control systems
• Precision instrumentation
• Medical devices
• Automotive electronics
• Battery-powered devices

With its robust design and high-performance characteristics, the LT1461CCS8-4#TRPBF from Analog Devices Inc. is a trustworthy component for engineers and designers looking to enhance the accuracy and stability of their electronic systems.
