The LT3009ESC8-1.2#TRMPBF is a high-performance, low dropout linear regulator (LDO) from Analog Devices Inc., designed to deliver a continuous output current of up to 20mA. This component is part of the LT3009 series, which is known for its ultra-low quiescent current, making it an excellent choice for battery-powered and energy-sensitive applications.

Key Features

• Low Dropout Voltage: The LDO offers a very low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• High Output Accuracy: With an output voltage of 1.2V, the LT3009ESC8-1.2#TRMPBF provides high accuracy, which is crucial for sensitive electronic circuits.
• Ultra-Low Quiescent Current: A standout feature of this device is its ultra-low quiescent current of just 3µA, which helps to extend battery life in portable applications.
• Thermal Protection: The built-in thermal protection safeguards the device against overheating, ensuring reliable performance under varying conditions.
• Stable with Low-ESR Ceramic Capacitors: The regulator is stable with ceramic output capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) compared to other capacitor types.

Applications

The LT3009ESC8-1.2#TRMPBF is ideally suited for a wide range of applications, including but not limited to:

• Portable Electronics
• Battery-Powered Devices
• Wireless and RF Systems
• Power Management for DSPs and Microcontrollers
• Automotive Power Supplies
• Medical Devices

Quality and Reliability

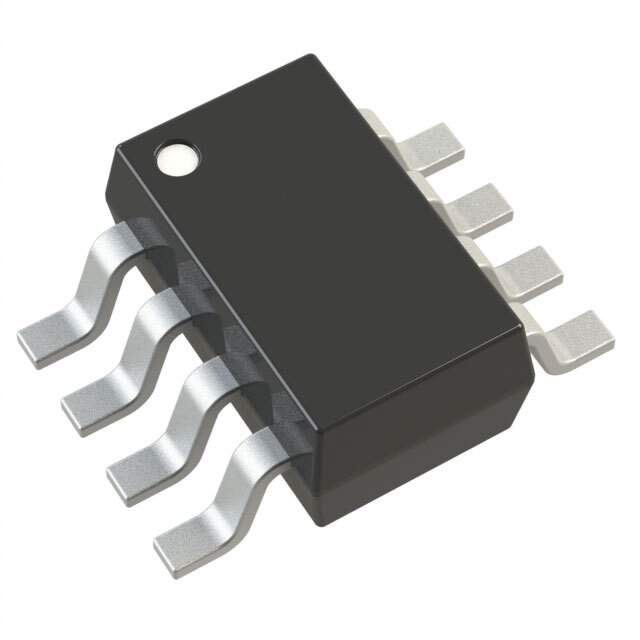

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the LT3009ESC8-1.2#TRMPBF is no exception. It is available in a compact SC-70 package and is fully RoHS compliant. The product is also provided in tape and reel packaging, designated by the '#TRMPBF' suffix, which facilitates automated pick-and-place manufacturing processes.

With its robust design and advanced features, the LT3009ESC8-1.2#TRMPBF from Analog Devices Inc. is a superior choice for designers looking to optimize power consumption and extend battery life in their electronic systems.
