Product Overview: LT3080ET#PBF

The LT3080ET#PBF is a versatile, adjustable 1.1A single resistor low dropout linear regulator (LDO) from Analog Devices Inc. This innovative product is designed to cater to a wide range of applications, including power supply designs that require easy-to-use, efficient, and flexible voltage regulation solutions.

Key Features

• Adjustable Output from 0V to V<sub>IN - 0.6V: The LT3080ET#PBF offers a wide output voltage range that can be set with a single resistor. This feature provides great flexibility, making it suitable for a variety of applications.
• 1.1A Output Current: The device can deliver up to 1.1A of output current, making it capable of powering a range of devices from microcontrollers to power amplifiers.
• Stable with Ceramic, Tantalum or Aluminum Electrolytic Capacitors: The LDO is compatible with different types of capacitors, which means it can be easily integrated into existing designs without the need for specific components.
• Low Dropout Voltage: The LT3080ET#PBF features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• Single Resistor Sets V<sub>OUT: The output voltage is set with just one resistor, simplifying the design and reducing the bill of materials.
• Current Limit Protection: The device includes current limiting features to protect both the regulator and the powered components from overcurrent conditions.
• Thermal Limiting: Integrated thermal limiting prevents the regulator from overheating, ensuring reliable performance under a variety of operating conditions.

Applications

The LT3080ET#PBF is ideal for a variety of applications, including but not limited to:

• Portable Devices
• Power Supplies for Instrumentation
• Industrial Equipment
• Automotive Electronics
• Post-Regulation for Switching Supplies

Package and Quality

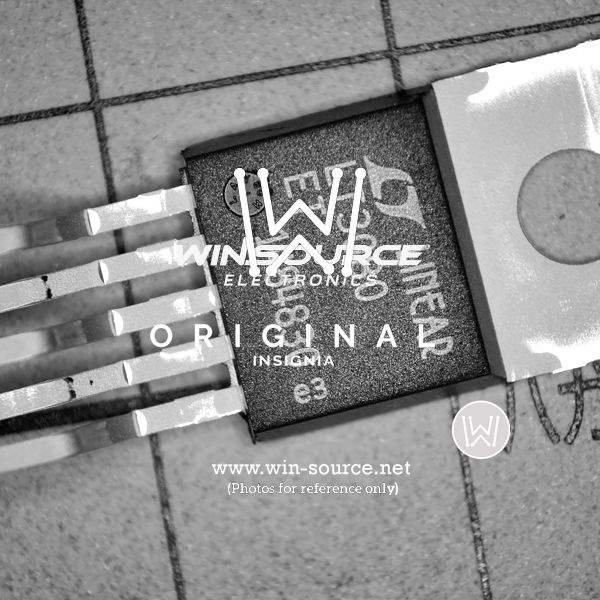

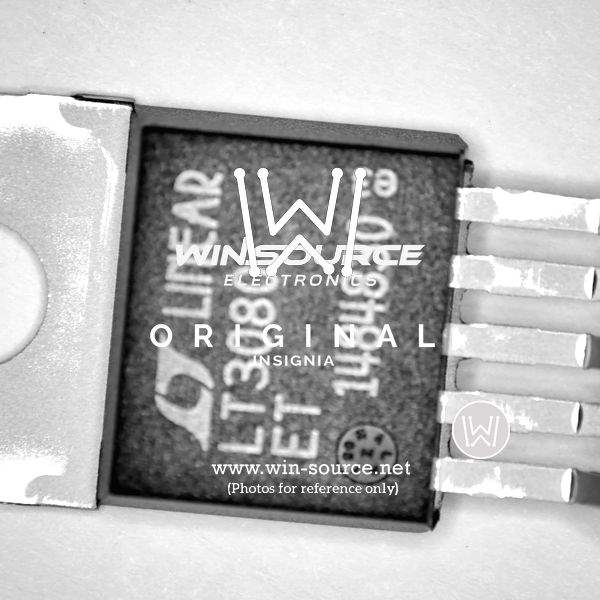

The LT3080ET#PBF comes in a robust TO-220 package, ensuring it can handle higher levels of heat and stress. Analog Devices Inc. is known for its commitment to quality, and this product is no exception, offering reliable performance for a wide range of industrial and commercial applications.

Whether you are designing a custom power supply or looking to add a reliable voltage regulator to your existing circuit, the LT3080ET#PBF from Analog Devices Inc. provides a flexible and efficient solution.
