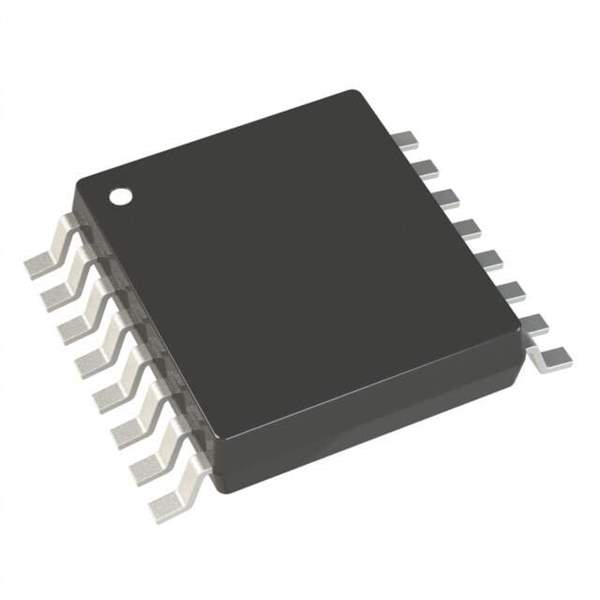

Product Overview: LT3506AEFE#TRPBF

The LT3506AEFE#TRPBF is a high-performance, triple-channel, current mode PWM step-down DC/DC converter designed and manufactured by Analog Devices Inc. This advanced power management integrated circuit (PMIC) is optimized for use in automotive, industrial, and distributed power systems where multiple voltage rails are required from a single input voltage source.

The device operates from a wide input voltage range of 4V to 36V, making it suitable for applications that are subjected to large supply variations, such as automotive battery systems. The LT3506AEFE#TRPBF features three independent output channels, each capable of delivering up to 1.4A of continuous output current, which can be adjusted via external resistors to meet specific design requirements.

One of the key advantages of this product is its robust thermal performance, housed in a thermally enhanced 16-lead TSSOP package with exposed pad for improved heat dissipation. This enables the LT3506AEFE#TRPBF to maintain performance even in environments with limited airflow or high ambient temperatures.

Moreover, the device includes a range of protection features to ensure reliable operation. These include internal soft-start to reduce inrush current during startup, cycle-by-cycle current limit, and thermal shutdown. Additionally, each channel has independent shutdown and soft-start capabilities, providing design flexibility and the ability to sequence power rails as needed.

The switching frequency of the LT3506AEFE#TRPBF is programmable from 250kHz to 2.2MHz, which allows designers to optimize efficiency and choose the appropriate external components to minimize solution size. The high frequency capability also enables the use of small surface mount inductors and capacitors, reducing the overall footprint and cost of the power supply design.

In summary, the LT3506AEFE#TRPBF from Analog Devices Inc. is a versatile and reliable solution for multi-output voltage regulation, offering high efficiency, a compact design, and advanced protection features. Its rugged design and wide input voltage range make it an ideal choice for demanding applications where performance and dependability are critical.
