The LT3512MPMS#PBF is a high-performance, isolated monolithic flyback converter from the renowned manufacturer Analog Devices Inc. This integrated circuit is specifically designed to simplify the process of creating an isolated power supply without the need for an optocoupler or third winding.

Key Features

• Wide Input Voltage Range: Capable of operating with an input voltage range of 4.5V to 100V, the LT3512MPMS#PBF provides versatility in various applications, accommodating a broad spectrum of power sources.
• Integrated 420mA, 150V Power Switch: With its built-in power switch, this device can deliver up to several watts of output power, depending on the input voltage and transformer design, making it suitable for a variety of isolated applications.
• No Optocoupler Required: The LT3512MPMS#PBF utilizes boundary mode operation to eliminate the need for an optocoupler, simplifying design and improving reliability.
• Programmable Soft-Start Function: This feature limits the inrush current at startup, providing additional protection to the converter and the load.
• Thermal Protection: The device includes over-temperature protection, ensuring safe operation under high-temperature conditions.

Applications

The LT3512MPMS#PBF is ideal for a range of isolated power supply applications, including but not limited to:

• Industrial control systems
• Telecommunications equipment
• Medical diagnostic equipment
• Isolated automotive supplies

Quality and Reliability

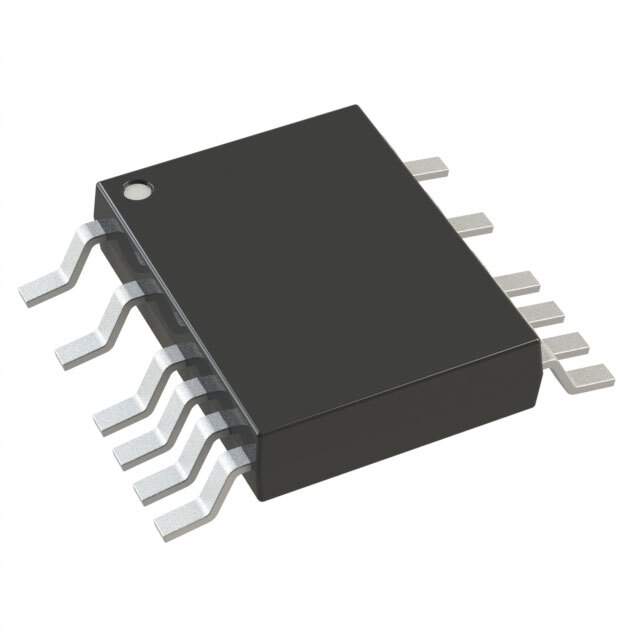

As with all Analog Devices Inc. products, the LT3512MPMS#PBF is manufactured to the highest quality standards, ensuring reliable performance even in demanding environments. The device is available in a 16-lead MSOP package with an exposed pad for enhanced thermal performance.

Conclusion

The LT3512MPMS#PBF from Analog Devices Inc. represents a robust solution for designers looking to implement isolated power supplies with minimal external components and complexity. Its wide input voltage range, integrated power switch, and absence of optocoupler requirements make it a highly efficient and reliable choice for a variety of applications.
