Product Overview: LT3086ER#PBF - Analog Devices Inc.

The LT3086ER#PBF is a robust linear voltage regulator from Analog Devices Inc., designed to offer stability, reliability, and versatility for a wide array of applications. This component is part of the LDO (low dropout) regulator family, ensuring efficient operation even when the voltage difference between the input and output is minimal.

Featuring an extended temperature range, this regulator is suitable for demanding environments, making it an ideal choice for industrial, automotive, and other high-temperature applications. The LT3086ER#PBF is capable of delivering up to 2.1A of continuous output current with a dropout voltage of typically 330mV at full load, which helps to maintain efficiency and reduce power loss.

One of the key attributes of the LT3086ER#PBF is its wide input voltage range, from 1.8V to 20V, providing the flexibility needed to support various input sources. The output voltage is also adjustable from 0.8V to 19.5V, allowing for a broad spectrum of output requirements to be met with a single device. This adjustability is achieved through the use of a single external resistor, simplifying the design and minimizing the external component count.

The device incorporates several protective features to ensure long-term reliability. These include internal current limiting, thermal shutdown, and reverse-battery protection. Furthermore, the LT3086ER#PBF is designed with a current monitoring output stage, which can be used to drive a current sense resistor, providing an analog output of load current for system monitoring purposes.

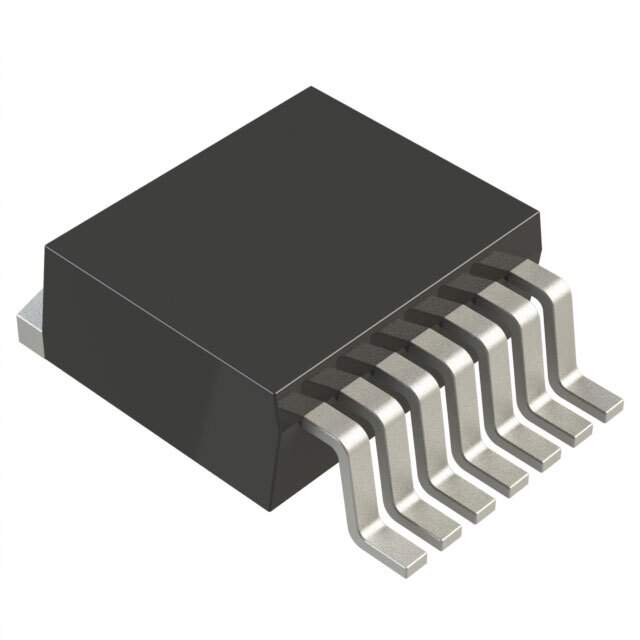

The LT3086ER#PBF is packaged in a robust, thermally enhanced 16-lead TSSOP package with exposed pad for improved thermal performance. Its compact form factor and surface-mount design make it suitable for space-constrained applications.

In summary, the LT3086ER#PBF from Analog Devices Inc. is a high-performance, adjustable LDO voltage regulator that offers a combination of flexibility, efficiency, and protection, making it an excellent choice for a wide range of power management solutions.
