The LT3518EFE#TRPBF is a highly versatile and efficient LED driver integrated circuit (IC) from the reputable manufacturer Analog Devices Inc. This component is designed to cater to a broad range of lighting applications, including automotive, display backlighting, and general illumination. The IC's robust feature set enables precise control and drive of LEDs, ensuring optimal performance and reliability.

Key Features:

• Wide Input Voltage Range: The LT3518EFE#TRPBF operates over a wide input voltage range of 3V to 30V, making it suitable for a variety of power supplies and battery-operated systems.
• Internal 2.3A Switch: It incorporates an internal 2.3A, 45V switch that can drive up to ten white LEDs in series, providing consistent brightness and eliminating the need for external power transistors.
• Adjustable Frequency: The switching frequency is adjustable from 330kHz to 2.2MHz, which allows designers to optimize efficiency while minimizing external component sizes.
• True Color PWM Dimming: The device offers true color PWM dimming, which delivers exceptional color stability and precise brightness control.
• Thermal Protection: It features robust thermal protection that safeguards the IC under over-temperature conditions, enhancing system safety and longevity.

Applications:

• Automotive and Avionic Lighting
• Display Backlighting (LCD, OLED, etc.)
• General Purpose LED Illumination
• Architectural Detail and Accent Lighting
• Portable Flashlights and Lanterns

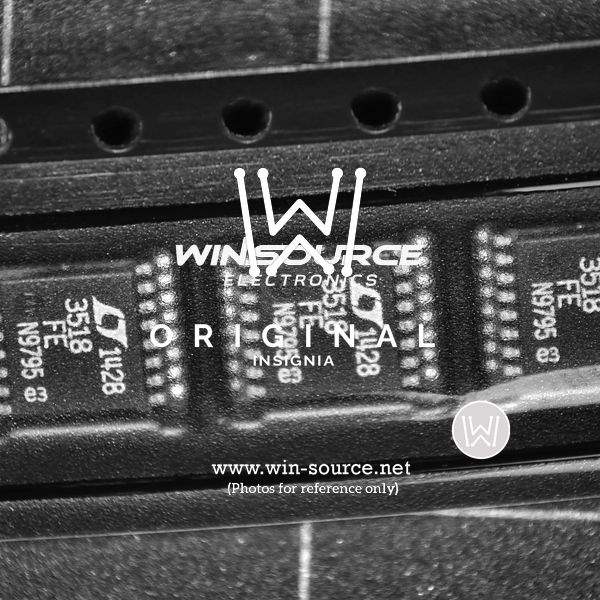

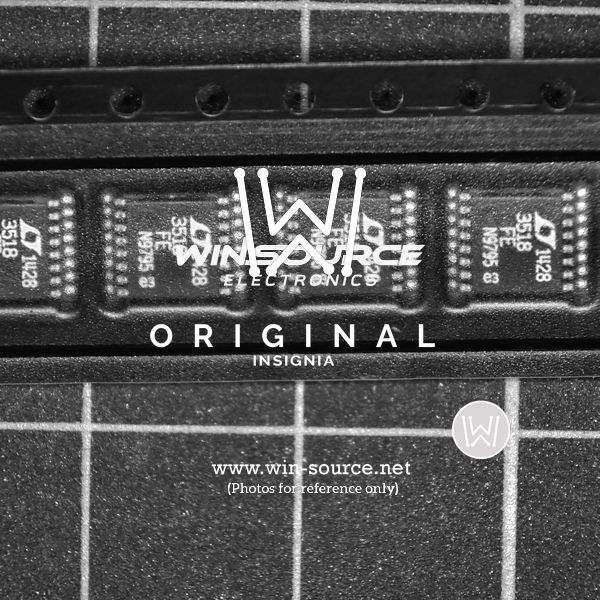

The LT3518EFE#TRPBF is packaged in a thermally enhanced 16-lead TSSOP package with an exposed pad for improved thermal performance. Its compact form factor and high level of integration make it an ideal choice for space-constrained applications. With its advanced features and robust design, this LED driver IC from Analog Devices Inc. is engineered to meet the demands of modern lighting solutions, delivering high efficiency, reliability, and flexibility to designers and engineers alike.
