Product Overview: LT8304HS8E-1#PBF

The LT8304HS8E-1#PBF is a high-performance, monolithic flyback regulator from Analog Devices Inc. that simplifies the design of an isolated DC/DC converter. With no optocoupler, third winding, or signal transformer required for regulation, this device offers a compact and efficient solution for applications requiring isolated power delivery.

Key Features

• Wide Input Voltage Range: The LT8304HS8E-1#PBF operates over a 3V to 100V input voltage range, making it suitable for a variety of supply voltages.
• Low Ripple Burst Mode® Operation: Its innovative design ensures low ripple and high efficiency across a wide range of load currents.
• Integrated 630mA, 150V Switch: The inclusion of a high-voltage power switch enables this IC to deliver robust performance in challenging environments.
• Programmable Soft-Start: This feature allows for controlled ramp-up of the output voltage, which can be useful in preventing inrush current-related issues.
• Output Short-Circuit Protection: The device is designed to protect itself and the load in the event of a short circuit, enhancing system reliability.
• Thermal Shutdown: With built-in thermal shutdown, the LT8304HS8E-1#PBF is safeguarded against overheating, further ensuring stable operation over its lifespan.

Applications

The versatility of the LT8304HS8E-1#PBF allows it to be used in a wide range of applications, including but not limited to:

• Isolated Industrial, Medical, and Telecom Power Supplies
• Auxiliary Power Supplies
• Electric Vehicle Systems
• Battery-Powered Equipment
• Power Over Ethernet (PoE) Systems

Package and Quality

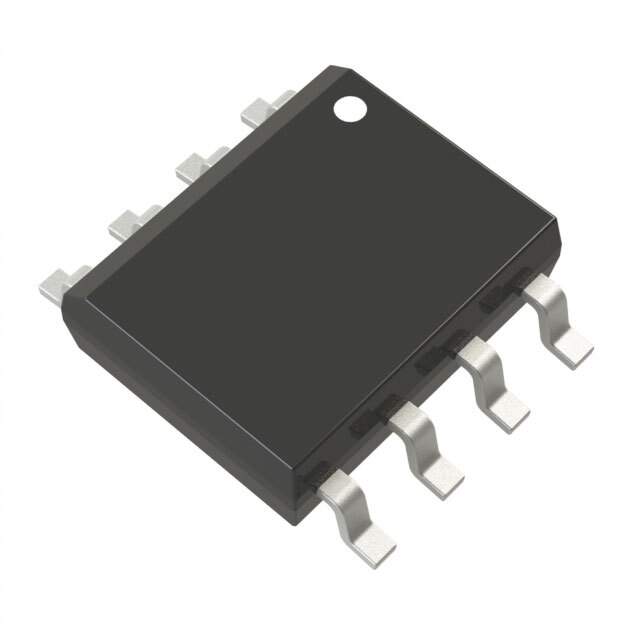

The LT8304HS8E-1#PBF comes in a compact, thermally enhanced 8-lead SO package, ensuring efficient heat dissipation and reduced footprint on the PCB. Analog Devices Inc. is known for its commitment to quality, and this product is no exception, meeting stringent industry standards for performance and reliability.

Conclusion

In summary, the LT8304HS8E-1#PBF is a highly integrated and efficient solution for generating isolated power. Its ease of use, coupled with robust protection features, makes it an excellent choice for designers looking to streamline their power supply designs while maintaining high standards of safety and performance.
