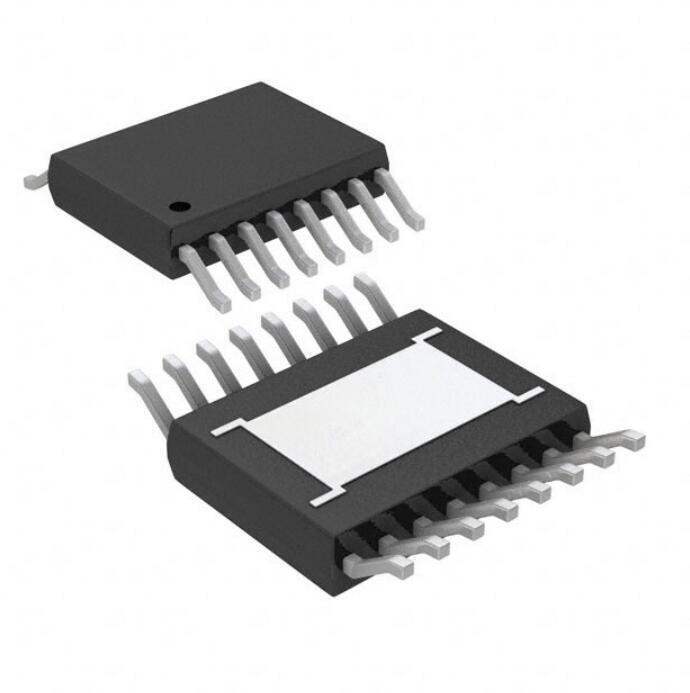

The LT8609AIMSE16#PBF is a high-performance, compact, synchronous step-down regulator from Analog Devices Inc. Designed to deliver efficiency and reliability, this regulator is an ideal solution for applications requiring low voltage outputs at high currents, while maintaining a minimal footprint on the PCB.
Key Features
- High Efficiency: The LT8609AIMSE16#PBF boasts a high efficiency rating, which can significantly reduce power loss and improve overall system performance.
- Wide Input Voltage Range: This regulator operates over a wide input voltage range, accommodating various power supply conditions and ensuring consistent performance.
- Adjustable Switching Frequency: Users can adjust the switching frequency as per their design requirements, providing flexibility and optimization for noise-sensitive applications.
- Fast Minimum On-Time: The device features a fast minimum on-time which enables large step-down ratios, making it suitable for fast transient applications.
- Thermal Performance: Enhanced thermal performance ensures the device operates reliably over a wide temperature range, making it suitable for industrial and automotive applications.
Applications
- Automotive and Transportation
- Industrial Power Supplies
- Data Communication Systems
- Point-of-Load Applications
Quality and Reliability
Analog Devices Inc. is renowned for its commitment to quality, and the LT8609AIMSE16#PBF is no exception. It is designed to meet the stringent requirements of various industries, ensuring long-term reliability and performance.
Product Specifications
| Parameter |
Value |
| Input Voltage Range |
3.4V to 42V |
| Output Current |
Up to 2A |
| Switching Frequency |
200kHz to 2.2MHz |
| Package |
16-Lead MSOP |
| Temperature Range |
-40°C to +125°C |
Overall, the LT8609AIMSE16#PBF from Analog Devices Inc. is a robust and efficient solution for modern electronic systems requiring a high-quality power regulator. Its advanced features and flexible design make it a top choice for engineers and designers looking to improve system performance and reliability.
