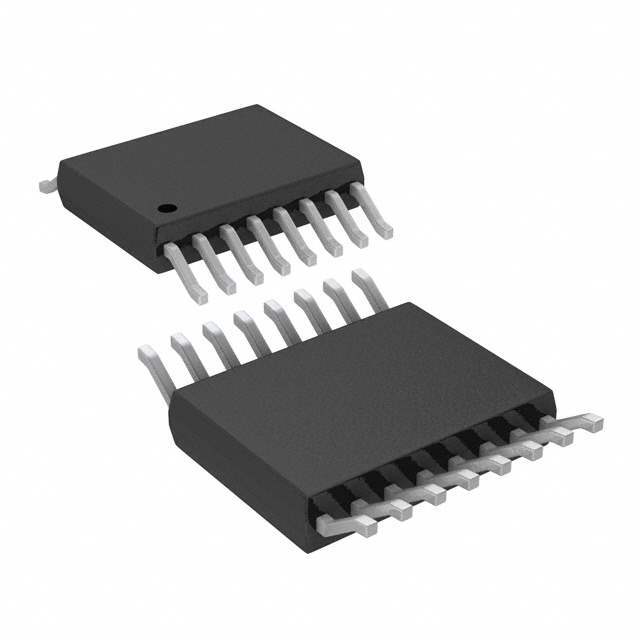

Same model may have multiple batches, images only for reference.
LTC2645HMS-L12#PBF Analog Devices Inc.
Same model may have multiple batches, images only for reference.

LTC2645HMS-L12#PBF

Part No LTC2645HMS-L12#PBF
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT V-OUT 16MSOP
Datasheet
LTC2645HMS-L12#PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306902-LTC2645HMS-L12#PBF
Category Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)
Manufacturer Analog Devices Inc.
Packaging Tube
Part Status Active
Number of Bits 12
Number of D/A Converters 4
Settling Time 7.8µs (Typ)
Output Type Voltage - Buffered
Data Interface PWM
Reference Type External, Internal
Ultra Librarian 3D Model Ultra Librarian LTC2645HMS-L12#PBF CAD Model

Description

  • No Latency PWM-to-Voltage Conversion
  • Voltage Output Updates and Settles within 8µs
  • 100kHz to 30Hz PWM Input Frequency
  • ±2.5LSB Max INL; ±1LSB Max DNL (LTC2645-12)
  • Guaranteed Monotonic
  • Pin-Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range
  • 1.71V to 5.5V Input Voltage Range
  • Low Power: 4mA at 3V, <1µA Power-Down
  • Guaranteed Operation from –40°C to 125°C
  • 16-Lead MSOP Package
