Product Overview: LTC3108EDE#PBF

The LTC3108EDE#PBF is a highly integrated DC/DC converter designed by Analog Devices Inc., tailored for energy harvesting and low power applications. This innovative product is engineered to manage energy from thermoelectric generators (TEGs) or other low voltage sources, providing a versatile solution for extending the battery life of your electronic devices or even enabling battery-free operation in certain applications.

Key Features:

• Ultra-Low Voltage Operation: The LTC3108 operates from input voltages as low as 20mV, making it perfect for use with TEGs and other low voltage energy sources.
• Integrated Power Management: It features an onboard step-up converter and a 2.2V LDO for stable energy supply, ensuring consistent performance even with fluctuating input.
• Multiple Output Voltages: The device provides selectable output voltages of 2.35V, 3.3V, 4.1V, or 5V, allowing flexibility in powering a wide range of low power circuits.
• Energy Storage: It includes an auxiliary energy storage feature that supports a secondary output from an optional storage capacitor or rechargeable battery, further enhancing its power management capabilities.
• Low Quiescent Current: With an extremely low quiescent current, the LTC3108 is optimized for battery-powered and energy harvesting applications where power efficiency is critical.

Applications:

The LTC3108EDE#PBF is suitable for a variety of applications, including but not limited to:

• Wireless Sensor Networks
• Energy Harvesting Systems
• Industrial Monitoring Devices
• Remote Data Loggers
• Portable and Wearable Electronics

Product Specifications:

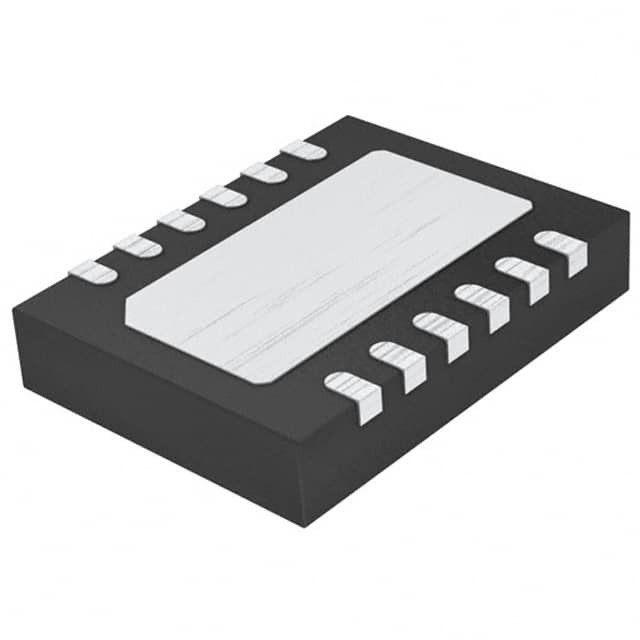

The LTC3108EDE#PBF comes in a compact 12-lead (4mm × 3mm) DFN package, which is RoHS compliant and designed for space-constrained applications. The product is characterized by its robust design, capable of withstanding harsh environments and providing reliable performance over a wide temperature range.

In summary, the LTC3108EDE#PBF by Analog Devices Inc. is an exceptional choice for designers looking to harness low levels of ambient energy to power small electronic devices. With its ultra-low input voltage capability and efficient power management, it stands as a cornerstone component for innovative, sustainable energy solutions.
