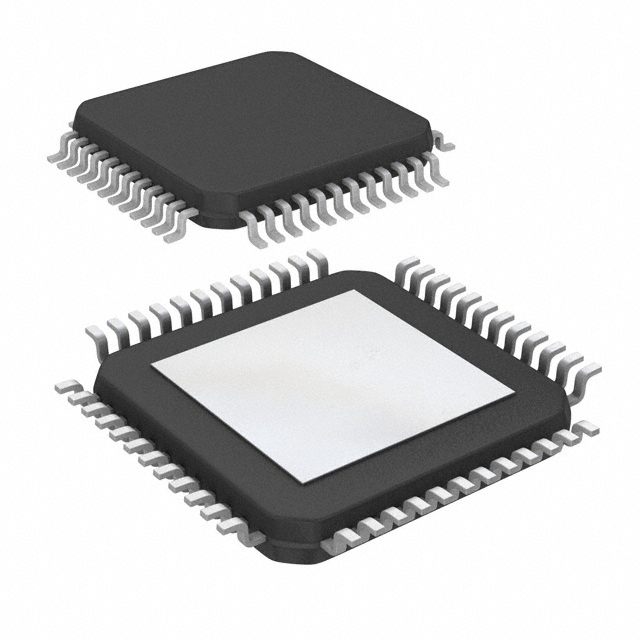

NXP MC33FS6501CAE System Basis Chip

The NXP MC33FS6501CAE is a multifunctional system basis chip designed to support the power and communication requirements of automotive applications. This advanced integrated circuit is part of the MC33FS6500 family and is engineered to provide a secure and efficient interface between the vehicle's power supply, microcontrollers, and peripherals. Its robust design and wide range of features make it an ideal choice for automotive control units, sensor modules, and gateway applications.

Key Features

• Multiple Voltage Regulators: The device includes a 5V/450mA buck regulator, a 5V/250mA linear regulator, and a 3.3V/150mA linear regulator, ensuring stable power supply for various components.
• Watchdog Timer: An integrated watchdog timer enhances system reliability by monitoring the system for proper operation and initiating a reset if necessary.
• CAN Transceiver: Equipped with a high-speed CAN transceiver, the MC33FS6501CAE facilitates reliable communication in vehicle networks, adhering to the ISO11898 standard.
• Fail-Safe Outputs: The chip features fail-safe outputs to maintain system integrity and ensure safe operation under fault conditions.
• Wake-Up Inputs: Multiple wake-up inputs are provided, allowing the system to be activated from sleep mode by various triggers, such as key ignition or network activity.
• Temperature Range: It operates over a wide temperature range, making it suitable for harsh automotive environments.

Applications

The MC33FS6501CAE is versatile and can be used across a range of automotive applications, including but not limited to:

• Body Control Modules
• Gateway Modules
• Powertrain Systems
• Advanced Driver Assistance Systems (ADAS)
• Automotive Sensor Modules

With its integration of power management, watchdog functionality, and network communication, the NXP MC33FS6501CAE system basis chip is a comprehensive solution that enhances the performance and reliability of automotive electronic systems. Its compact form factor and robust design make it well-suited for the demanding requirements of modern vehicles, ensuring safety, efficiency, and connectivity.
