Product Overview: LTC3805IDD#TRPBF from Analog Devices Inc.

The LTC3805IDD#TRPBF, manufactured by Analog Devices Inc., is a high-performance constant frequency current mode step-down DC/DC controller that provides a compact and efficient power management solution for a wide range of applications. This advanced component is designed to drive an external MOSFET at frequencies up to 750kHz, allowing for the use of smaller, lower cost inductors and capacitors, resulting in a more compact overall design.

Featuring a wide input voltage range of 4V to 60V, the LTC3805IDD#TRPBF is suitable for regulating power from a variety of sources, including automotive batteries, industrial supplies, and unregulated wall adapters. Its output voltage can be set from 0.8V to VIN with a high accuracy of ±1%, ensuring precise voltage regulation for sensitive electronic devices.

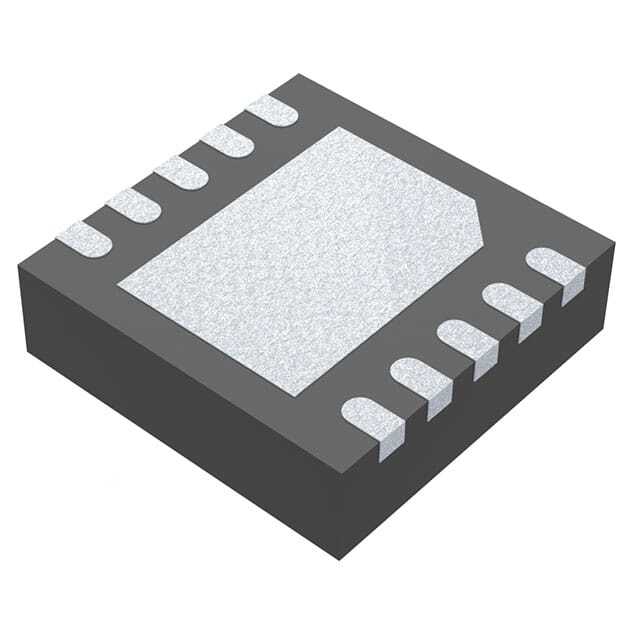

The device comes in a low-profile (0.75mm) 10-lead DFN package with enhanced thermal performance, making it ideal for space-constrained applications where efficient heat dissipation is crucial. The LTC3805IDD#TRPBF also features a robust design with several protective functions, including overvoltage protection, undervoltage lockout, and thermal shutdown, enhancing system reliability and safety.

Key features of the LTC3805IDD#TRPBF include:

• No R<SUB>SENSE™ Current Mode Control for excellent line and load transient response.
• Adjustable operating frequency from 100kHz to 750kHz, which can be synchronized to an external clock for noise-sensitive applications.
• Powerful 1.1Ω onboard gate drivers.
• OPTI-LOOP® Compensation to optimize transient response, output voltage regulation, and loop stability.
• Tracking and soft-start capabilities for controlled startup and system sequencing.
• A shutdown feature that reduces supply current to

The LTC3805IDD#TRPBF is a versatile and reliable choice for engineers looking to design high-performance power systems with stringent space requirements. Its advanced feature set ensures efficient operation, robust protection, and ease of use, making it an ideal choice for applications in the automotive, industrial, and telecommunications sectors, as well as portable electronics and distributed power systems.
